Hager FI/LS switch

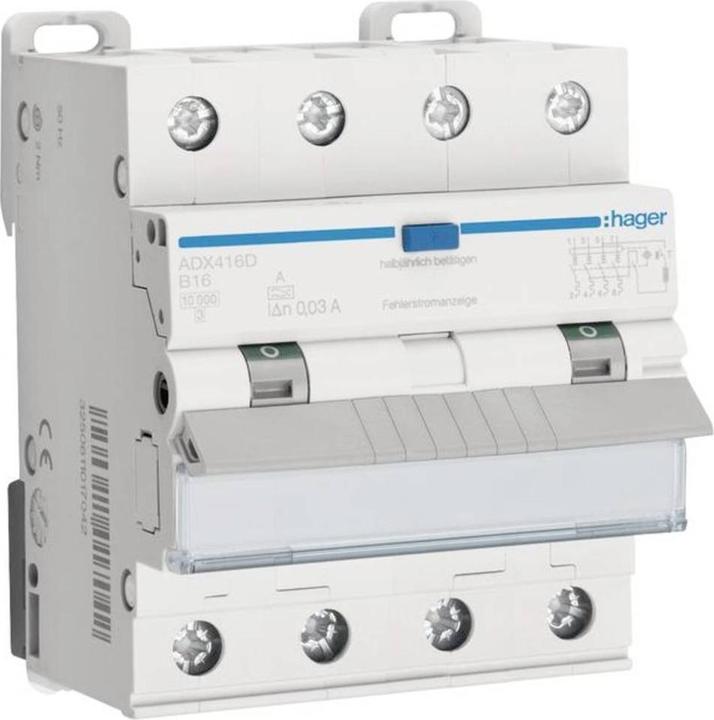

Hager RCD/MCB Switch ADX416D

Manufacturer: Hager
Designation: 4-pole RCD/MCB, 10kA
Type: ADX416D
Number of Poles (total): 4
Number of Protected Poles: 4
Rated Voltage: 400 V
Rated Insulation Voltage Ui: 500 V
Rated Impulse Voltage Withstand Uimp: 4 kV
Rated Current: 16 A
Rated Residual Current: 0.03 A
Residual Current Type: A
Energy Limitation Class: 3
Power Loss: 10.9 W
Rated Tripping Capacity according to IEC 60947-2: 10 kA
Rated Switching Capacity Icn according to EN 61009-1: 10 kA
Tripping Characteristic: instantaneous
Surge Current Withstand: 3 kA
Type of Voltage: AC
Frequency: 50 Hz
Tripping Characteristic: B
Switching Neutral Conductor: yes
With Locking Mechanism: yes
Overvoltage Category: 3
Degree of Pollution: 2
Ambient Temperature during Operation: -25..40 °C
Width in Division Units: 4
Installation Depth: 70 mm
Flush Mounting: yes
False Tripping Protection: no
Protection Class (IP): IP2X
Connectable Conductor Cross-Section Solid: 1..25 mm²
Connectable Conductor Cross-Section Stranded: 1..16 mm²

Hager RCD/MCB Switch ADX416D: additional details
Residual Current Circuit Breaker 4P 10kA B-16A 30mA Type A. Residual current circuit breaker according to DIN EN 61009-1 (VDE 0664-20) with a 4-pole circuit breaker for 400 V three-phase circuits and a residual current protection circuit in a compact housing, blue test button, and residual current indicator. Easy single removal from the phase rail connection. Suitable for retrofitting additional devices. Labeling option directly on the device.
