Hager FI/LS switch

Ratings
Currently out of stock

Product details

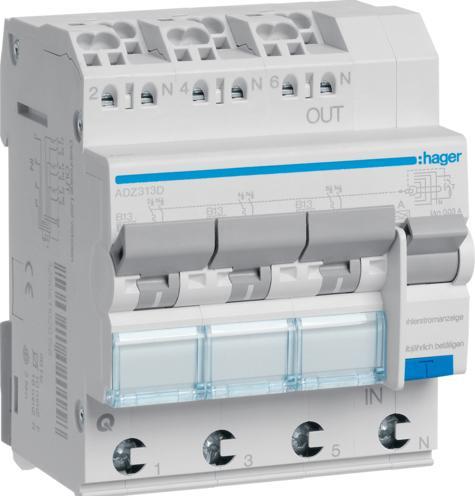

The Hager RCD/MCB switch, model ADZ313D, is a highly advanced residual current circuit breaker specifically designed for use in 230 V AC circuits. Combining residual current protection and circuit protection, this device provides a reliable solution for safeguarding electrical installations against overload and fault currents. The switch meets the requirements of DIN EN 61009-1 and is equipped with a QuickConnect terminal that allows for easy installation and maintenance. Its compact design and the option for individual removal from the busbar system make it a practical choice for various applications. Additionally, the switch features a clear fault current indicator and a blue test button that facilitates functionality checks. The Hager RCD/MCB switch is thus a safe and user-friendly solution for modern electrical systems.

  • Residual current circuit breaker according to DIN EN 61009-1 (VDE 0664-20)
  • QuickConnect terminal for easy installation
  • Touch protection according to IP2x (DIN VDE 0106 Part 100)
  • Easy individual removal from the busbar system
  • Suitable for retrofitting additional devices.

Key specifications

Circuit breaker type
Miniature circuit-breaker/residual current circuit-breaker combination
Length
70 mm
Width
4 mm
mounting style
Top-hat rail
number of poles
4
Item number
20026771

General information

Manufacturer
Hager
Category
Residual-current device
Manufacturer no.
ADZ313D
Release date
16.3.2022

Circuit Breaker Features

Circuit breaker type
Miniature circuit-breaker/residual current circuit-breaker combination
mounting style
Top-hat rail
number of poles
4
Tripping characteristic
B
Rated current
13 A
Rated current
0.03 A
Rated voltage
230 V
voltage type
AC
Rated insulation voltage Ui
500 V
Residual current (rated differential current)
0.03 A
Protection type (IP code)
IP20

Origin

Country of origin
Poland

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
70 mm
Width
4 mm

Package dimensions

Length
10 cm
Width
8.10 cm
Height
8 cm
Weight
416 g

30-day right of return if unopened
24 Months Warranty (Bring-in)
