Gude Relay Universal Module Expert Net Control 2302-1
More than 10 items ordered
Product details

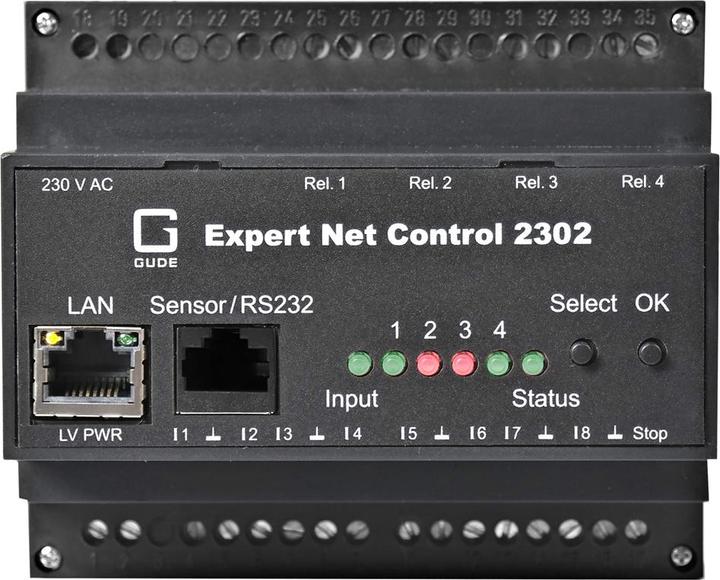

The Gude Expert Net Control 2302-1 is an advanced remote control system specifically designed for DIN rail mounting. With its three switchable relay outputs, it allows for precise control over a TCP/IP network. Each output is equipped with two energy meters that can measure a variety of electrical parameters such as current, voltage, and power factors. Additionally, the device offers the capability to monitor environmental conditions like temperature and humidity through a sensor connection. The user-friendly LED display shows important information such as total current, IP address, and sensor values. The switch outputs can be controlled not only directly on the device but also via HTTP or serial interfaces. An integrated 3-channel watchdog ensures the monitoring of connected devices, enhancing the system's reliability.

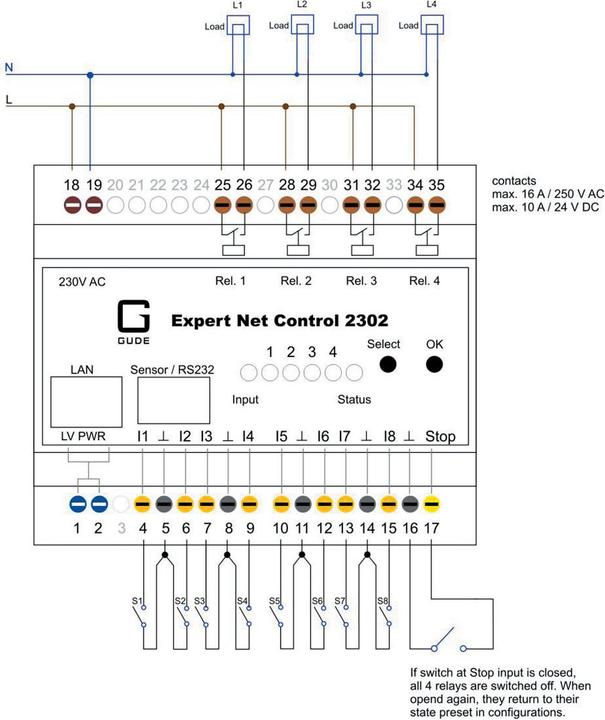

- Three switchable relay outputs with 230 V AC, 16 A
- Two energy meters per output for comprehensive measurements
- LED display for showing current, IP address, and sensor values
- Integrated 3-channel watchdog for device monitoring.
