Gude IP sensor unit

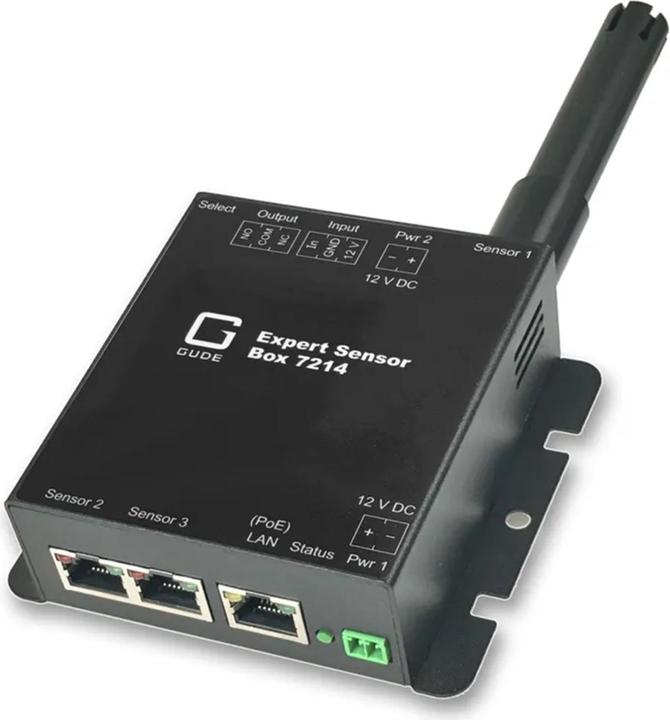

Expert Sensor Box 7214 Series

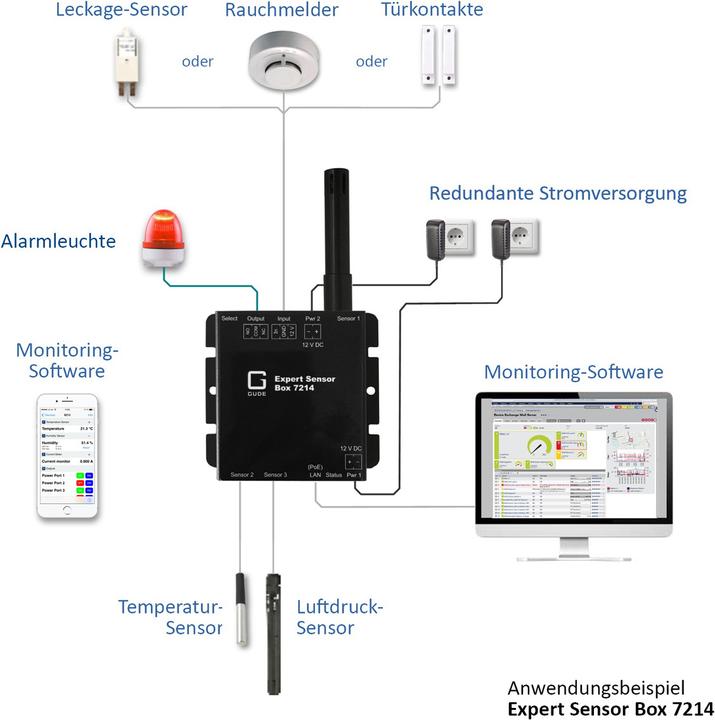

Standalone LAN sensor for environment monitoring and I/O monitoring. The Expert Sensor Box 7214 Series enables the environmental monitoring of IT installations over TCP/IP networks. Three variants are available, each equipped with built-in sensors and two sensor ports for extended monitoring. Depending on the model, the integrated sensors can measure temperature, humidity, and air pressure. All three sensor variants are also available as models with Power-over-Ethernet (PoE) support.

In addition, the devices feature a switchable relay output and a passive signal input, allowing for remote control of connected NO/NC devices. The Expert Sensor Box 7214 Series is equipped with SNMPv3, SSL, and IPv6 capabilities, and supports Telnet, Radius, and Modbus TCP.

• Integrated temperature, humidity, and air pressure sensor
• Two ports for additional optional sensors
• Passive signal input and switchable relay output
• IPv6, SNMPv3, SSL, Telnet, Radius, Modbus TCP
• Two ports for redundant power supply
• Also available as a Power-over-Ethernet version.
