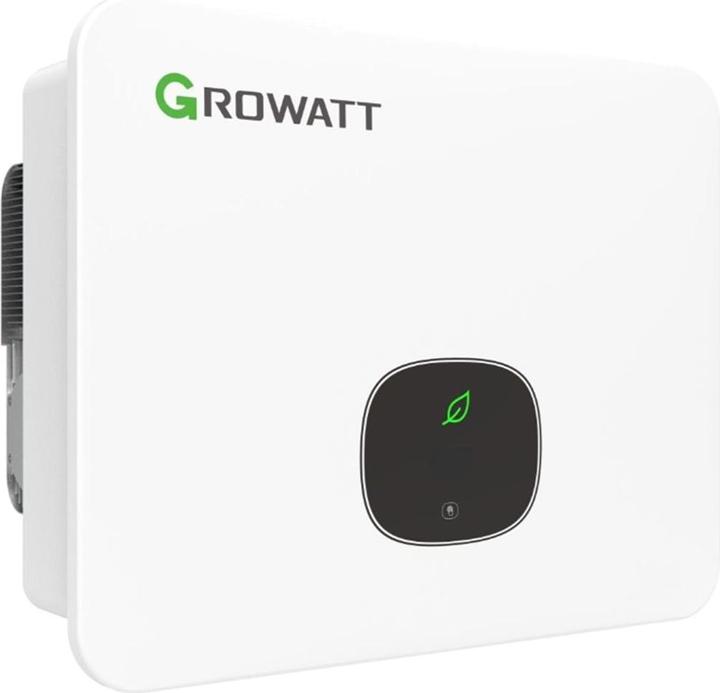

Growatt GW MID 20KTL3-XH - 20kW hybrid inverter

The Growatt MID 20KTL3-XH hybrid inverter is a 3-phase powerhouse that effortlessly powers large solar systems with remarkable performance and versatile features. The inverter boasts a high efficiency of 98.75% as well as its compactness and user-friendliness, making it a reliable partner in system configuration. It offers 2 independent MPPT inputs and can handle an impressive PV output of 40,000 W. For operation, it is equipped with an OLED touch display, allowing for easy and straightforward control. Additionally, the inverter provides the option to connect loads and batteries, with compatibility for Growatt's APX battery system. Optionally, the MID-XH series can be combined with the SYN 100 XH 30 backup box to achieve off-grid operation.

The MID-XH series includes:

• 2 independent MPPTs
• Battery-ready, future-proof
• Type II SPD on DC and AC sides
• Integrated AFCI function
• OLED, LED, and touch button
• DC/AC ratio up to 2.0
• 24-hour self-consumption monitoring
• 10-year manufacturer warranty

Unlike traditional inverters, hybrid inverters can not only feed the generated electricity from the solar system into the grid but also store it in batteries. This ensures that solar power is available even when the sun isn't shining.
