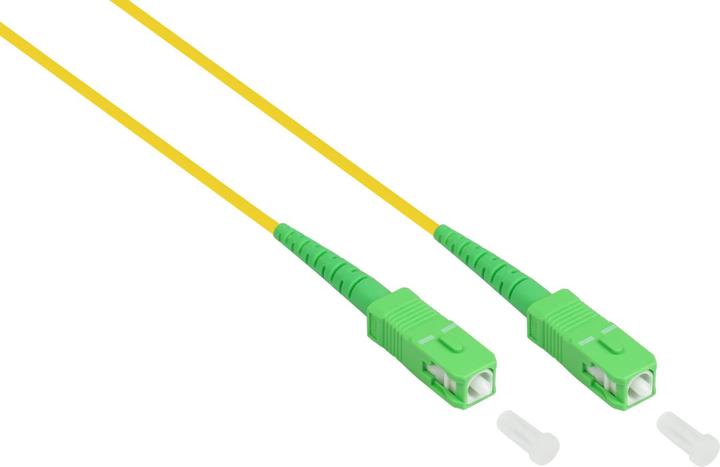

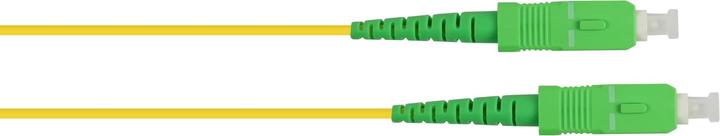

Good Connections OS2 fibre optic cable - simplex - connector LC (APC) to SC (APC) - singlemode 9/125 - lightwave

Fiber optic (LWL) patch cables enable the connection of various network components while ensuring loss-free data transmission. Different quality classes (OMx/OSx) facilitate the qualitative and functional differentiation of a fiber optic patch cable.

Extensive application areas - FTTx and Data Center
Whether in a private household or in demanding professional scenarios, this simplex patch cable is ideally suited for the connection area of FTTH (Fiber To The Home), FTTB (Fiber to the Building), FTTO (Fiber to the Office), and FTTx, thanks to its low 15 mm bending radius and excellent attenuation values. For example, it can be used between the house connection point (HÜP) and the network termination device / Optical Network Termination (ONT) / modem. It can also be used to connect NAS, gaming PCs, or media centers with routers, Fritzboxes, or modems.

High quality standards, 100% testing, and individual measurement protocol
The use of high-quality materials and modern production facilities, along with continuous quality control during the production process, ensures loss-free signal transmission and consistently high quality. Each individual patch cable undergoes testing after assembly. Following successful measurement, each patch cable is accompanied by an individual measurement/testing protocol.

Technical specifications:

Fiber optic (LWL) simplex patch cable
Connector 1: LC (APC)
Connector 2: SC (APC)
Includes dust protection caps
Attached bend protection sleeve
Fiber quality: OS2
Fiber: G652D
Fiber type: Singlemode 9/125 µ
Cable construction: Simplex
Cable diameter: 2.0 mm
Sheath material: Halogen-free (LSZH)
Min. bending radius: 15 mm
Operating temperature: -40 to +85 °C
Quality: Each cable comes with its own measurement/testing protocol
Color: Yellow (OS2)
Length: 3 m.
