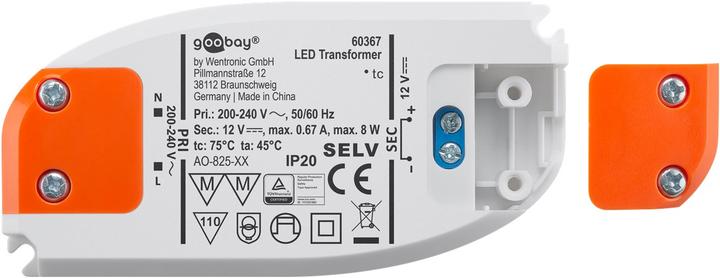

Goobay LED transformer

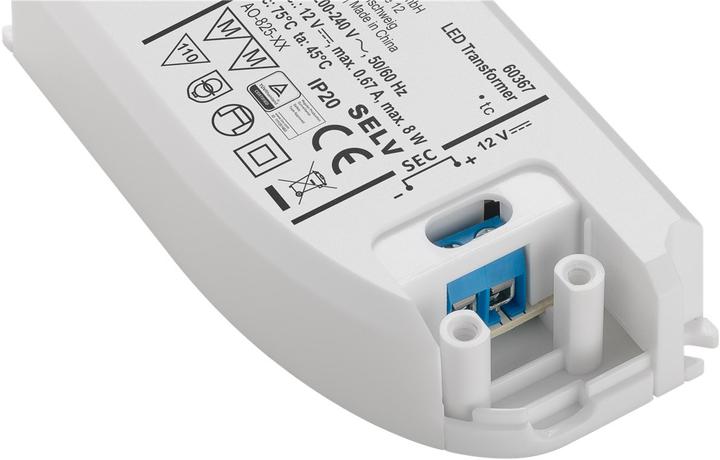

Our transformers supply LEDs with constant voltage (CV) and offer high flexibility, for example, when connecting different lengths of LED strips. They are the perfect solution for LED modules that require a fixed voltage and have their own resistor. The compact LED transformer does not require a minimum load for connecting light sources such as LED strips or LED modules to the power grid with 200-240 V AC. The constant voltage of 12 V DC allows for the flexible addition and removal of individual LEDs in parallel circuits, as well as variable lengths of LED strips. With the integrated screw terminals, the DC source is easy and quick to install. The flat design and low heat generation enable space-saving installation of the driver, even in tight spaces. The LED driver is approved for installation in furniture and can be discreetly mounted, for example, behind cabinets. It is suitable for parallel circuits and indoor use (IP20), with safe electronic isolation according to protection class II, as well as overvoltage and short-circuit protection. Dimensions L x W x H: 94.5 x 46.2 x 19.5 mm. Note: The LED transformer is not dimmable.
