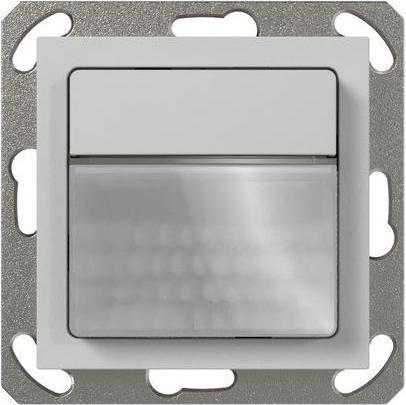

Gira Motion detector 1.10 m

Motion detector 1.10 m for Gira One in matte gray. The motion detector with passive infrared sensor (PIR) is designed for Gira One and enables the automatic switching of Gira One actuators based on movement and brightness. The delay time for Gira One consumers can be configured via the respective actuator channel in the Gira Project Assistant (GPA). An integrated temperature sensor measures the room temperature. Additionally, there is a built-in local button for controlling Gira One consumers: switching, stairwell, and scene. The commissioning of the motion detector is done with the Gira Project Assistant (GPA) version 5.2. Data transmission between Gira One devices is encrypted.

Features of the motion detector:

• Rectangular detection area of 170°, 14 x 17 m (238 m²) at a mounting height of 1.10 m.
• Extension of the detection area possible with additional motion detectors.
• The detection area can be restricted.
• The sensitivity of the sensor can be configured.
• A walk test function assists in the planning and adjustment of the PIR detection area.
• Mixed light measurement suitable for fluorescent lamps, halogen/incandescent lamps, and LEDs.

Room temperature:

• Temperature calibration for the integrated temperature sensor.

LED display:

• Function selection of the status LED: always off or display of movement.
• Updatable via the Gira Project Assistant (GPA).

The motion detector is not suitable for alarm notifications in VdS-compliant alarm systems.
