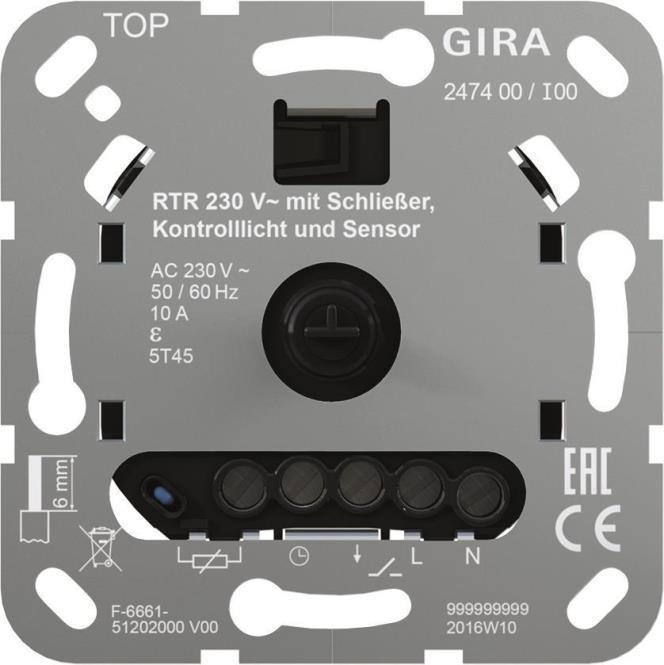

Gira Insert room thermostat 247400

Gira Room Temperature Controller 247400

Manufacturer: Gira
Description: Room Temperature Controller 230V
Type: 247400
Design: brand-specific
Power Supply Type: 230 V AC
Connection: three-/four-wire
Measuring Range: 10..50 °C
Thermal Feedback: none
Control Characteristic: PID
Suitable for Heating: yes
Number of Heating Outputs: 1
Suitable for Cooling: no
Temperature Readable: no
With Noise Level Indicator: no
Sensor Type: Resistance Sensor
Mounting Type: Flush-mounted
With Display: no
Operation: Rotary
Concealed Operation: no
With Drinking Water Circuit: no
Contact Type: Normally Closed (NC)
Max. Voltage of Contacts: 230 V
Protection Class (IP): IP20
Explosion-Proof: no
Color: other
Standby Power Consumption: 0.5 W
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT Support Available: no

Application: Room temperature controller 230 V~/10 A with normally closed contact, indicator light, and sensor for electric underfloor heating. Electronic temperature controller for managing electric underfloor heating or floor temperature systems. Regulates floor temperature in enclosed spaces. Manual shutdown of floor temperature control. Input terminal for activating the setback temperature (ECO) via central clock. External temperature sensor (remote sensor). Frost protection function. Output signal: Pulse Width Modulation (PWM) or two-point control (On/Off). Heating interruption during continuous heating after one hour for 5 minutes. The adjustable range of room temperature can be limited with adjustment rings. Install the remote sensor in the floor within a conduit. The connection to the remote sensor can be extended up to 50 m with a 2-wire cable (2 x 1.5 mm²). Remote sensor in plastic cap is included.
EAN: 4010337104407.
