Product details

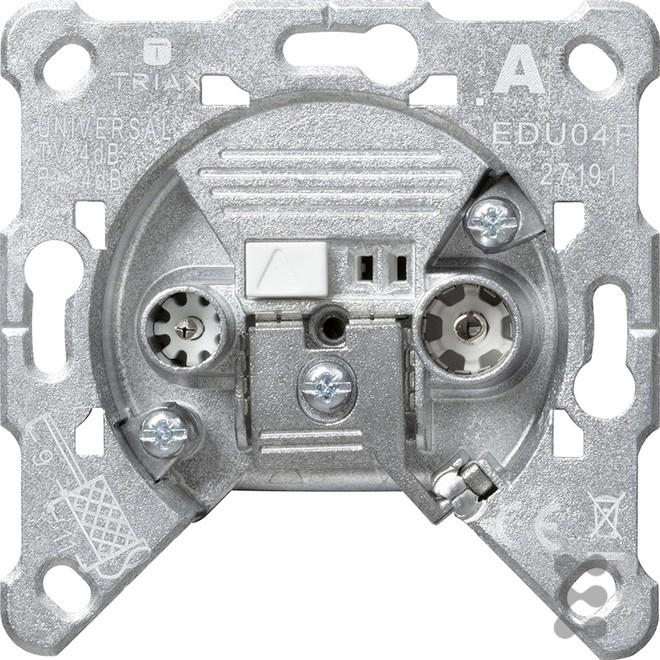

Gira antenna socket outlet 004600

Manufacturer: Gira
Designation: Antenna socket outlet EDU 04F
Type: 004600
Design: Feed-through socket outlet
Mounting type: Flush-mounted
Cover: Without
Connection attenuation at 860 MHz: 5 dB
Connection attenuation at 2150 MHz: 5 dB
Number of outlets: 2
Suitable for cable modem: Yes
Remote power supply suitable: No
Frequency: 4 to 2400 MHz
Halogen-free: No
Antibacterial treatment: No
Protection class (IP): IP20

Features: Can be used as a single socket outlet. The complete signal spectrum from 4 to 2400 MHz is available at both connections. DC voltage transmission (max. DC 24 V 500 mA) to a satellite antenna is possible via the TV connection.

Notes: Only for screw mounting. Observe installation space for plugs and bending radii. Not suitable for duct installation and standard device box. Connection with angled plugs recommended. When using these plugs, there is a power limit of 15 watts for connected devices.

Installation recommendation:

  • Kaiser electronic sockets flush-mounted: Kaiser order no.: 1068-02
  • Cavity wall mounting: Kaiser order no.: 9062-94
  • Concrete installation: Kaiser order no.: 1268-40

For use in individual antenna systems and for community antenna systems, BK and satellite house distribution systems on decoupled spur lines.
EAN: 4010337046004.

Key specifications

Item number
21350221

General information

Manufacturer
Gira
Category
Satellite accessories
Manufacturer no.
004600
Release date
29.6.2022

Colour

Exact colour description
Other

Satellite properties

Satellite accessory type
Plug socket

Power supply

Power supply
Without external power source

Origin

Country of origin
Spain

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Antenna socket EDU 04F

Product dimensions

Length
400 mm
Width
90 mm
Height
60 mm

Package dimensions

Length
8 cm
Width
8 cm
Height
5 cm
Weight
100 g
