Four-Faith F-R100-FL - Cellular (LTE/WCDMA) Wi-Fi Router

Four-Faith F-R100-FL - Cellular (LTE/WCDMA) Wi-Fi Router

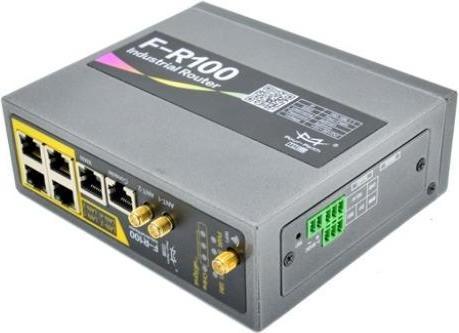

The Four-Faith F-R100 is an intelligent cellular router designed for industrial applications requiring faultless connectivity. It provides secure, reliable, real-time remote connectivity for SCADA, distribution management systems, metering, and more.

With software-defined, multi-carrier networking, dual-SIM models, 802.11n, and global 2.5G/3G/HSPA+/LTE options, it is easy to get connected. Featuring DIN-rail mounting, a wide operating temperature range, and IP30 metal housing, the F-R100 is a convenient yet reliable solution for any industrial wireless application.

Model F-R100-FL: Cellular (LTE/WCDMA), Wi-Fi, 1x SIM (expandable to 2), I/O (2x DI, 1x DO, 1x relay), GPS (option).

Cellular WAN
Supported frequency bands: LTE: B1, B2, B3, B4, B5, B7, B8, B20, B28; WCDMA: 2100 (B1), 1900 (B2), 850 (B5); EV-DO/CDMA: 800 (BC0); GSM/GPRS/EDGE: 850/900/1800/1900. Automatic SIM-based network operator switching.

Host Interfaces
10/100 Base-T RJ45 Ethernet port, RS-232 or RS-485 serial console port, 3x SMA antenna connectors (Wi-Fi and double-cellular), active GPS antenna support (option), 6-pin 3.5 mm terminal block.

Wi-Fi
IEEE 802.11 b/g/n, AP and client mode, adjustable output power (max.: 26 dBm), access point for up to 30 clients, simultaneous access point/client mode, WEP, WPA-PSK, WPA2-PSK security.

Input/Output
6-pin 3.5 mm terminal block, 2 DI, 1 DO, 1 relay. Input ON voltage: 5 to 30 V DC. Input OFF voltage: 0 to 3 V DC. Output: Relay: 1 A, 250 V AC/30 V DC.

Operation Environment
Operating temperature: -35°C to +75°C/-31°F to +167°F. Storage temperature: -40°C to 85°C/-40°F to 185°F. Humidity: 90% RH at 60°C.
