Focal Sub Air

This subwoofer is a logical extension of the DOME concept. It emphasizes this with its unique design and impressive single-block aluminum form. When combined with DOME satellite speakers, it produces sound comparable to much larger and more robust speakers. To achieve this level, the Dome subwoofer incorporates the best in speaker technology and a hybrid digital/analog BASH® amplifier, which is featured in all Focal subwoofers.

The Wi-Fi radio connection puts a permanent end to the eternal question: Where to put the cables? A discreet transmitter connects to the amplifier, making any cables unnecessary.

Technical specifications:

• SUB AIR
• Flat bass-reflex subwoofer with integrated 150W BASH® amplifier
• Speaker driver: 8" (21cm)
• Bass cutoff frequency: 35Hz
• Frequency output (±3dB): 40Hz-200Hz
• Crossover cutoff frequency: variable 50Hz-200Hz

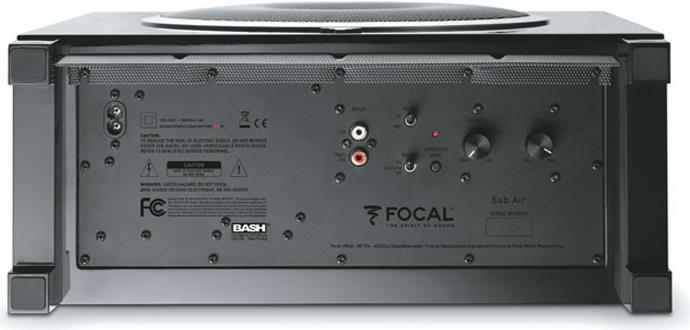

• Input panel: Left Right / LFE
• Output power: 110W
• Maximum power: 150W
• Phase adjustment: 0 - 180° switch
• Power function: ON Auto (1 W) OFF (0.5 W)
• Dimensions (HxWxD): 410mm x 360mm x 160mm
• Weight: 7.65 Kg

Technical specifications:

• Wireless connection
• Range: 15 meters (indoors)
• Sound sampling: 16 bits
• Sampling frequency: 44.1 kHz
• Encoding delay (latency): 13ms
• Radio transmission bandwidth: 2.4GHz ISM band.
