Extralink EX.1025 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet

8 Ports
Ratings
BrandMore from Extralink
Delivered between Wed, 11.6. and Tue, 24.6.
More than 10 items in stock at supplier

Product details

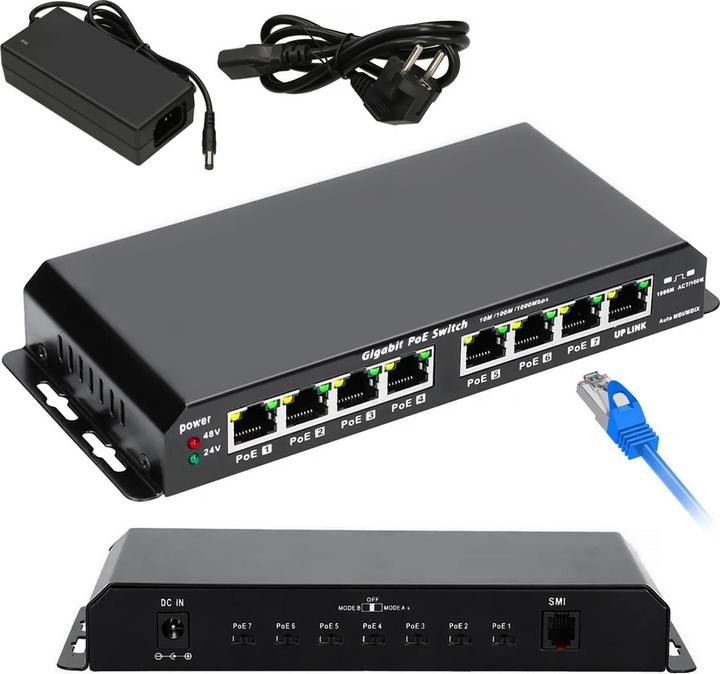

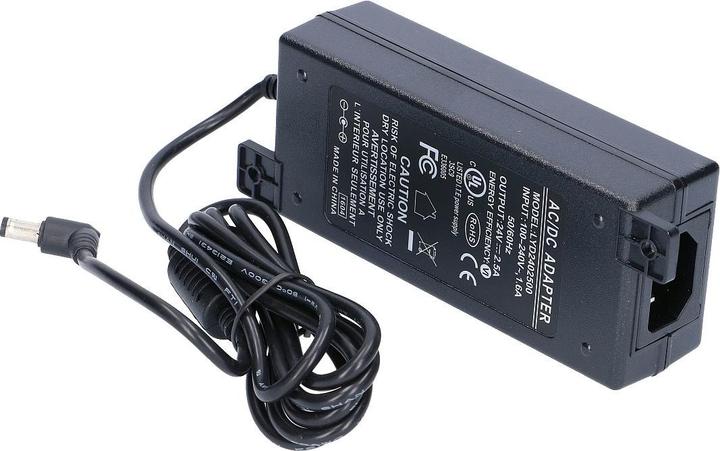

The Extralink Gigabit PoE Switch is a convenient power source switch that combines a small, high-efficiency 8-port 10/100/1000 Mbps switch with 7 PoE ports. It uses an external 18VDC to 57VDC power adapter. All 7 PoE Ethernet ports can provide 30W of power along with 10/100/1000M data transmission over standard Cat 5, 5e, or 6 cables.

The Extralink Gigabit PoE Switch allows for data and power to be transmitted over a single Ethernet twisted-pair cable to the attached devices. It is Power Source Equipment (PSE) and fully compatible with Powered Devices (PD) that comply with the passive PoE standard, enabling users to connect any PoE compliant device such as wireless access points, VoIP phones, IP cameras, printers, and network-attached storage to the PoE switch without requiring additional power.

This unit is designed with home and small business users in mind and offers a cost-effective solution for environments where AC power is not available or too costly to install.

Key specifications

Max. port speed
8000 Mbit/s
Network connections
RJ45 Gigabit Ethernet (8x)
Switchtype
Desktop switch
Number of PoE ports
8 Ports
Management
Unmanaged
Switch functions
PoE
Item number
22692937

General information

Manufacturer
Extralink
Category
Network switches
Manufacturer no.
EX.1025
Release date
17.10.2022
External links
Manufacturer's site (de)

Colour

Colour
Black
Exact colour description
Black

Switch properties

Switchtype
Desktop switch
Rack Unit
1U
Number of ports
8 Ports
Number of PoE ports
8 Ports
PoE Standard
Proprietary 24V
PoE budget
60 W
Management
Unmanaged
Switch functions
PoE
switching layer
Layer 2
Switching capacity
16 Gbit/s
MAC adress table size
4096
Manufacturer Type
EX.1025

Network connections

Network connections
RJ45 Gigabit Ethernet (8x)
Max. port speed
8000 Mbit/s
Max. port speed RJ45
1000 Mbit/s
Max. Port speed
1000 Mbps / 1 Gbps

Application range

Application range
Network

Mains supply properties

Network operation
Power supply unit redundant
Power consumption
90 W

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Power supply

Product dimensions

Length
8.20 cm
Width
19.20 cm
Height
2.70 cm
Weight
800 g

30-day right of return
24 Months Warranty (Bring-in)
