Extralink EX 10031
802.3af (PoE)Product details

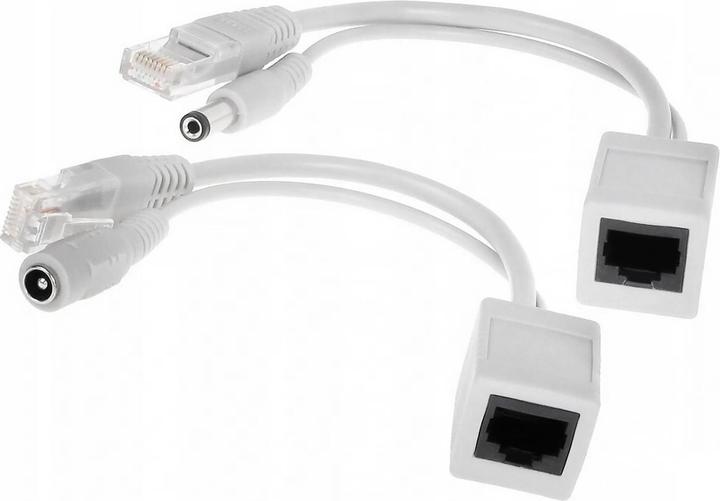

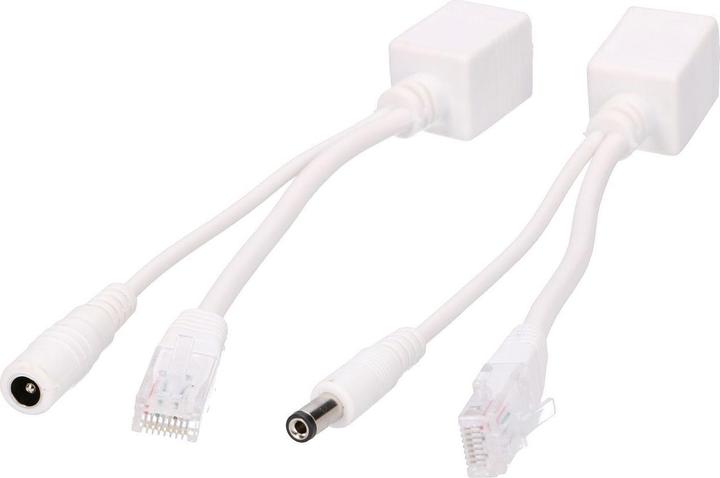

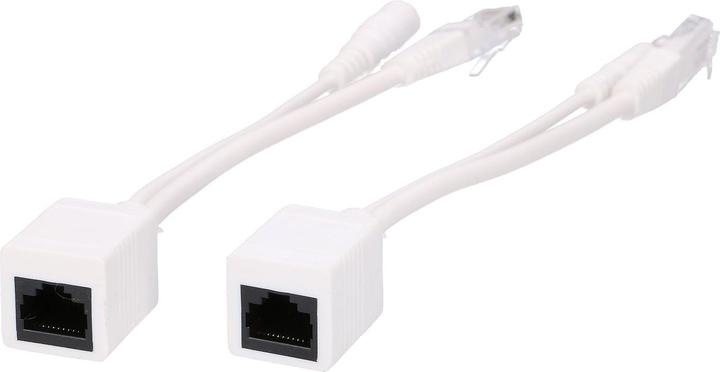

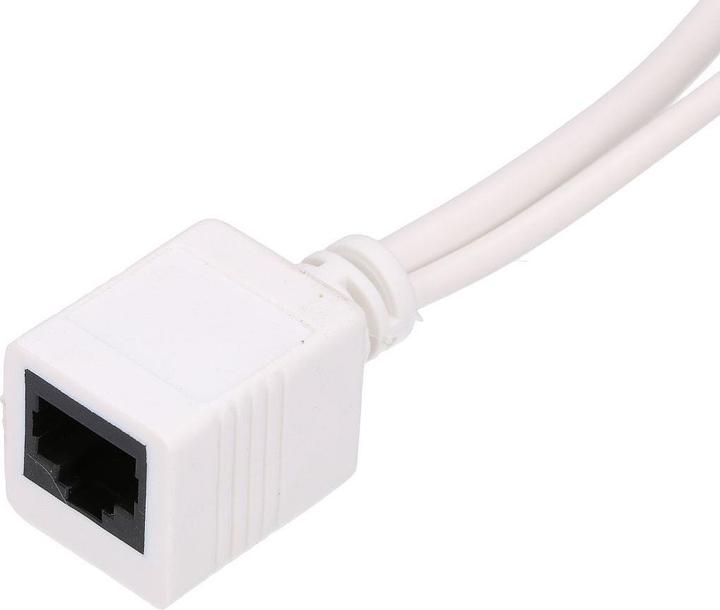

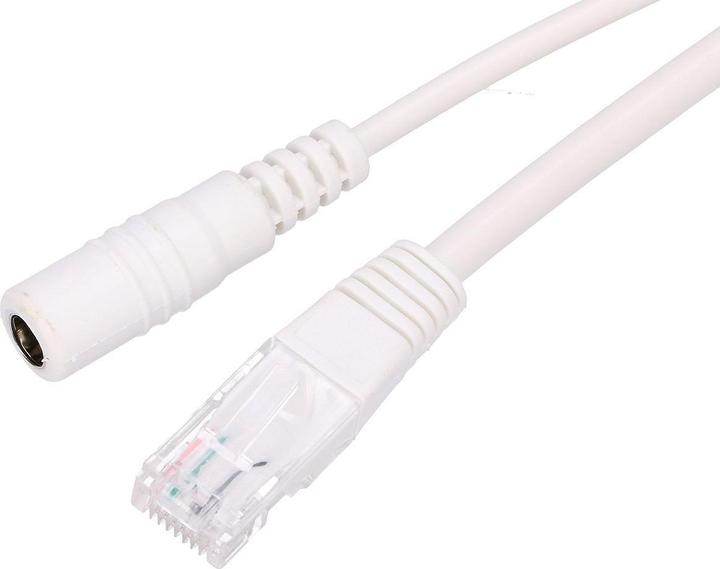

Extralink 1 port PoE injector and splitter
The PoE injector and splitter set is an ideal solution when you need to power a device that does not support either IEEE 802.3af or passive PoE, but due to the location of the device, there is a need to power it over twisted pair cable. In addition to supplying power, simultaneous network communication at a speed of 100 Mbps is also possible.
The set consists of an injector that feeds voltage into the Ethernet cable and a splitter that feeds voltage into the jack connector. The maximum input voltage is 48V DC. The power injector can be used to connect to a surveillance system with IP cameras that do not support Power over Ethernet or to wireless LAN access points. Using PoE injectors and splitters means you can use non-PoE switches.
output voltage | 48V |
Max. Port speed | 100 Mbps |
Network connections | RJ45 (2x) |
PoE Injector type | Active PoE Injector |
Number of ports | 1x |
Item number | 30165408 |
Manufacturer | Extralink |
Category | PoE injector |
Manufacturer no. | EX.10031 |
Release date | 25.4.2023 |
PoE Injector type | Active PoE Injector |
PoE Standard | 802.3af (PoE) |
Network connections | RJ45 (2x) |
Number of ports | 1x |
Max. Port speed | 100 Mbps |
output voltage | 48V |
CO₂-Emission | |
Climate contribution |
Length | 20 cm |
Width | 8 cm |
Height | 3 cm |
Weight | 59 g |
