Exsys Web-Managed Mini PoE+ Switch 8x 1 Gbit/s + 2x SFP

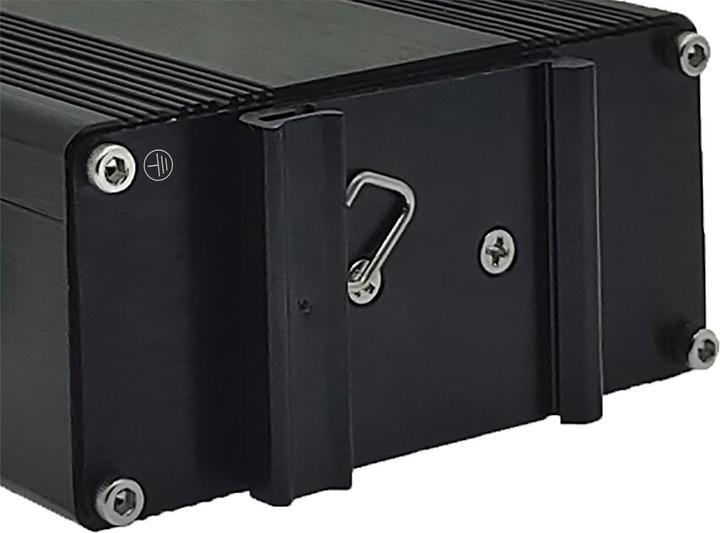

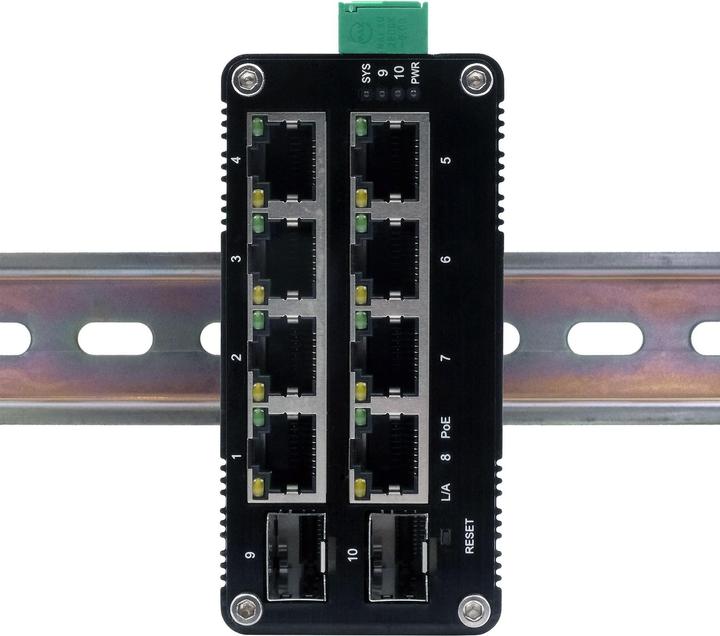

The possibly smallest industrial-grade 10-Port Gigabit Web-Managed PoE Switch EX-62035MPoE-SFP offers full Gigabit performance on all ports despite its compact dimensions. The eight RJ45 ports provide up to 30 W each for connecting PoE Power Devices (PD) such as IP cameras or IP phones. The two additional SFP slots allow integration into a fiber optic network. Compatible SFP transceivers are available as accessories. Thanks to its robust metal housing and an extended operating temperature range of -40 °C to 80 °C, it is suitable for a variety of applications even in harsh environments. Power is supplied via the terminal block (48-57 VDC) and can also be redundant to reduce downtime. A DIN-Rail kit (pre-assembled) is included in the delivery.

8x 10/100/1000Tx RJ45 ports, 2x 100/1000Fx SFP slots, auto detection. Web-Managed: browser-based access for easy installation and management. Powers up to 8 PoE-capable remote network devices, transmitting data and power over the same cable. Fully compatible with IEEE 802.3af PoE (PSE) Type 1 = 15.40 W and IEEE 802.3at PoE+ (PSE) Type 2 = 34.20 W. Maximum output power (PD): Type 1 = 12.95 W / Type 2 = 25.50 W. Compliant with IEEE 802.3af/at Power Over Ethernet (PoE), Mode/Alternative B. Auto-MDI/MDIX eliminates the need for crossover cables. Supports auto-negotiation and 10/100 Mbps half/full duplex and 1000 Mbps full duplex. Supports jumbo frames up to 9 kBytes. Terminal block for redundant DC input, 2x 48 V to 57 VDC. Robust, very compact metal housing, IP40. Includes DIN-Rail kit. Extended operating temperature range of -40 °C to +80 °C.

Delivery includes: EX-62035MPoE-SFP, DIN-Rail kit (pre-assembled), manual.
