Exsys PoE+ Gigabit Injektor 30W

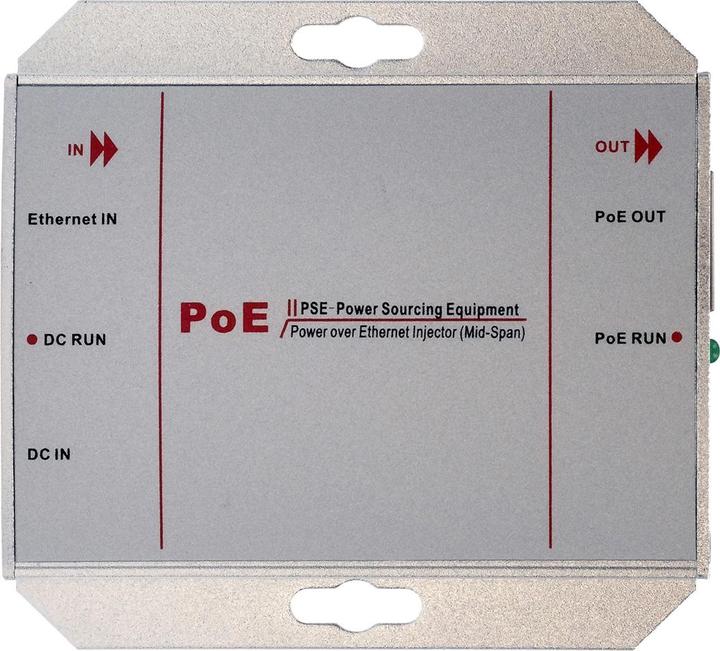

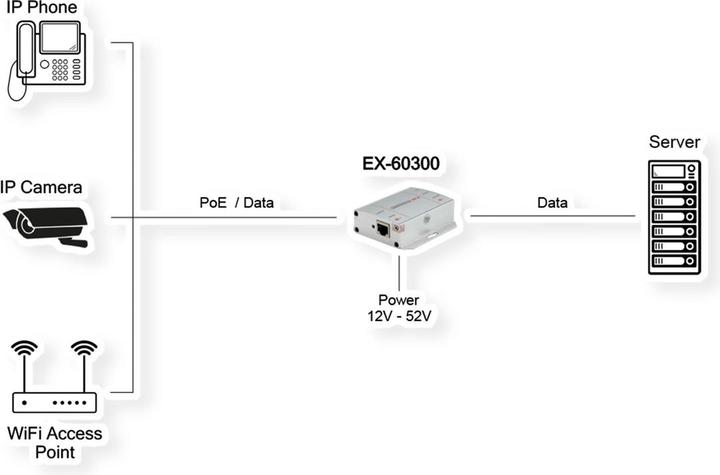

With the Gigabit Ethernet PoE Injector EX-60300 in a metal housing, devices such as IP phones, IP cameras, and WLAN access points can be powered via the network cable. It supports the PoE+ standard IEEE 802.3at. The maximum power (PD) at the PoE port is 12.95 W for Type 1 and 25.50 W for Type 2. The power supply from the external power adapter is provided through the +12 to +52 V DC socket. The EX-60300 ensures secure data transmission and excellent performance of up to 1000 Mbit/s. The robust metal housing is suitable for wall mounting. A 36 W power supply is included in the package.

• Powers network devices via the data line
• 10/100/1000Base-T Gigabit Ethernet
• Fully compliant with IEEE 802.3af/at Power Over Ethernet (PoE)
• Maximum output power (PD): Type 1 = 12.95 W / Type 2 = 25.50 W
• Plug and play, no configuration or installation required

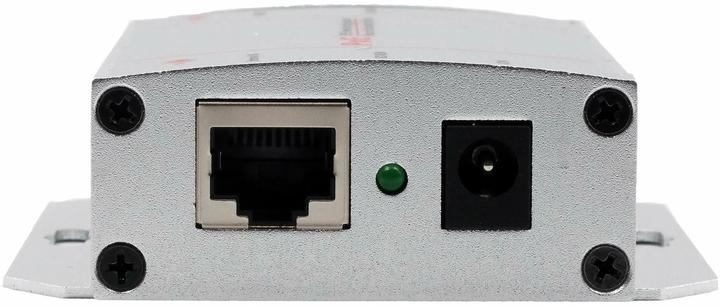

• LED status indicator for power supply and PoE
• DC socket for DC input from +12 V to +52 VDC
• Robust, compact metal housing, IP30

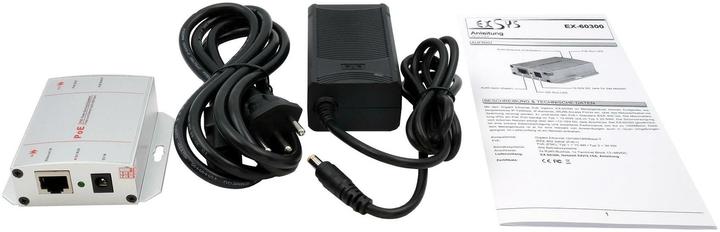

• Includes power supply 24 V / 1.5 A.
