Exsys Industrial PoE++ Gigabit Injektor 95W

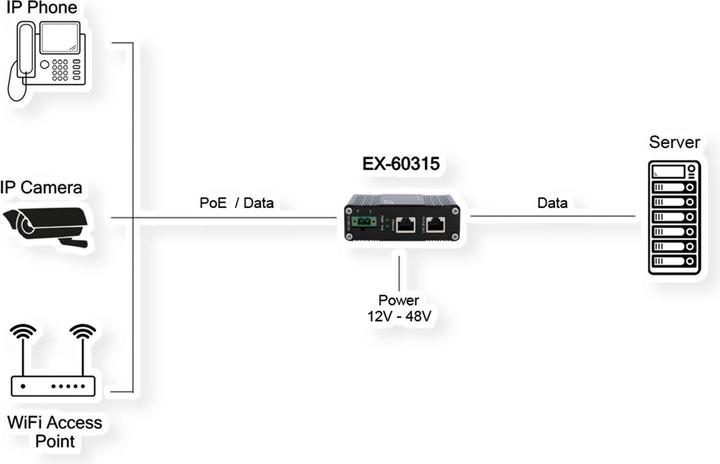

With the Gigabit Ethernet PoE Injector EX-60315 in a robust metal housing, devices such as IP phones, IP cameras, and WLAN access points can be powered via the network cable. It complies with the PoE++ standard IEEE 802.3bt. The maximum output power (PD) at the PoE port is 12.95 W for Type 1, 25.5 W for Type 2, and 90 W for LTPoE++. Power can be supplied from an optional external power supply via the +12 to +48 V terminal block. The EX-60315 ensures secure data transmission and excellent performance of up to 1000 Mbit/s. Thanks to its robust metal housing and extended operating temperature range of -40 °C to 80 °C, it is suitable for a variety of applications even in harsh environments. The package includes a DIN rail kit (pre-assembled) and a wall mounting bracket.

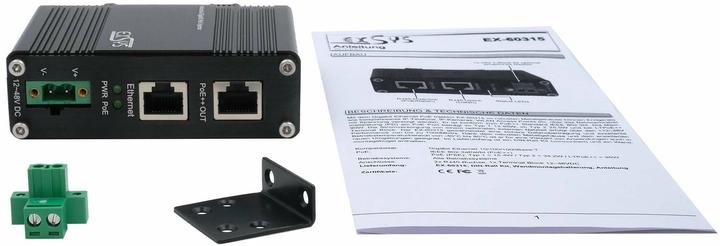

Package contents: EX-60315, DIN-Rail Kit (pre-assembled), wall mounting kit, manual

Powers network devices via the data line.
10/100/1000Base-T Gigabit Ethernet.
Fully compliant with IEEE 802.3af/at/bt Power Over Ethernet (PoE).
Maximum output power (PD): Type 1 = 12.95 W / Type 2 = 25.50 W / LTPoE++ = 90 W.
Plug and play, no configuration or installation required.
LED status indicators for power supply and PoE.
Terminal block for DC input, +12 V to +48 VDC.
Robust, compact metal housing, IP40.

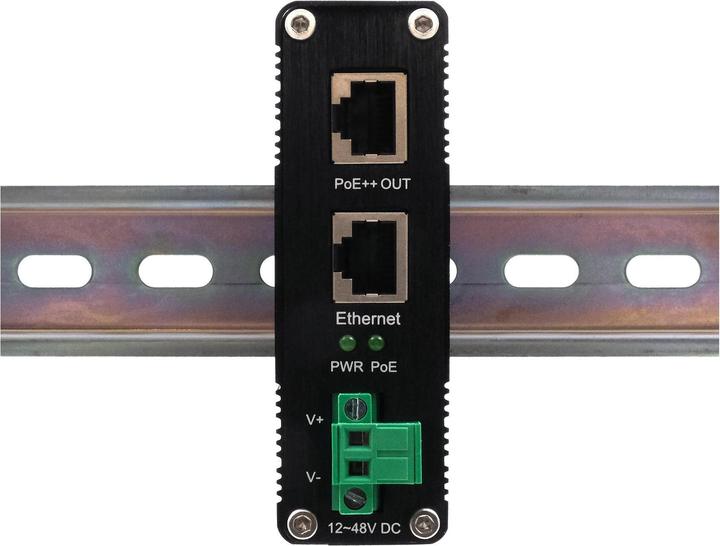

Includes DIN-Rail Kit and wall mounting bracket.
Extended operating temperature range of -40 °C to +80 °C.
