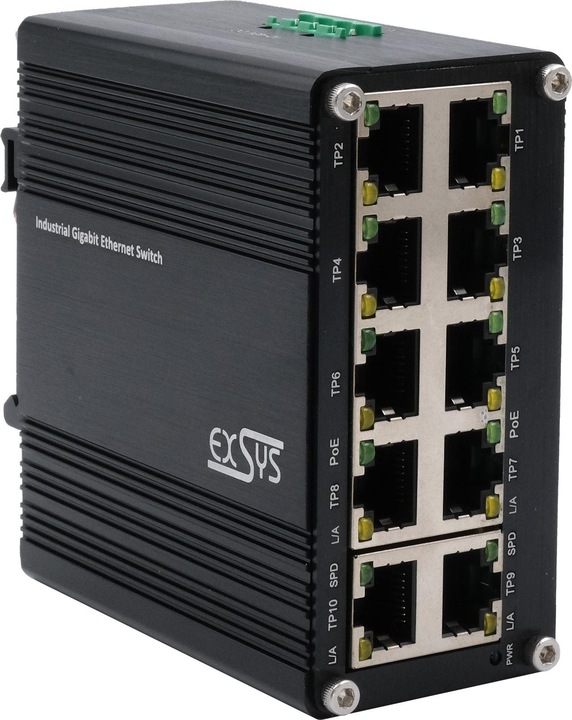

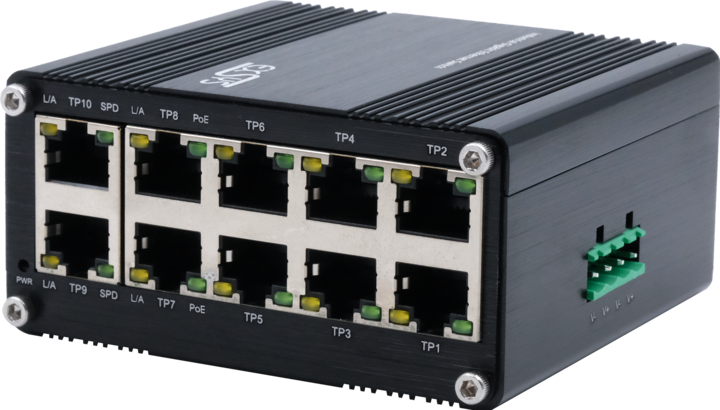

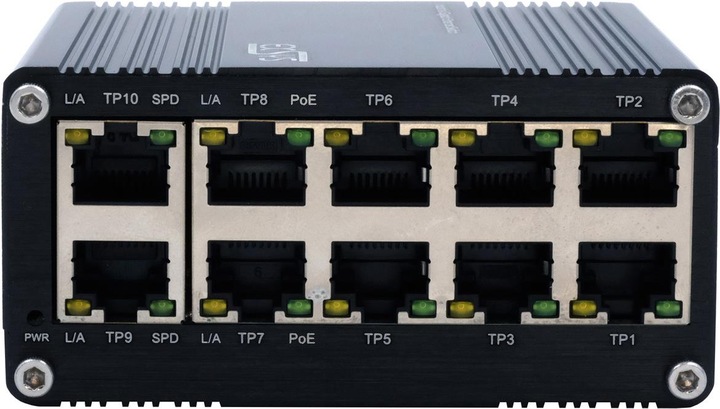

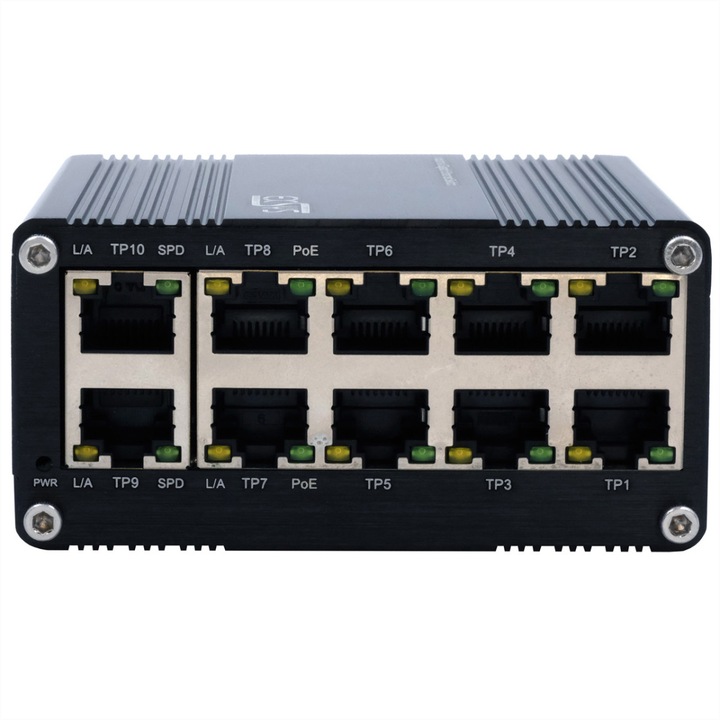

Exsys Industr. Mini PoE-Switch 10x 1 Gbps

The probably smallest industrial 10-port Gigabit PoE switch EX-62025PoE offers full Gigabit performance on all 10 ports despite its extremely small outer dimensions. Eight downlink ports provide up to 30W each for connecting PoE power devices (PD) such as IP cameras or IP phones. Thanks to the rugged metal housing and the extended operating temperature range from -40°C to 80°C, it is suitable for a variety of applications even in harsh environments. Power is supplied from the terminal block (48-57VDC) and can be redundant to reduce operational downtime. The EX-62025PoE supports Auto-MDI/MDI-X and Auto-Negotiation.

10-port 10/100/1000T Gigabit Ethernet

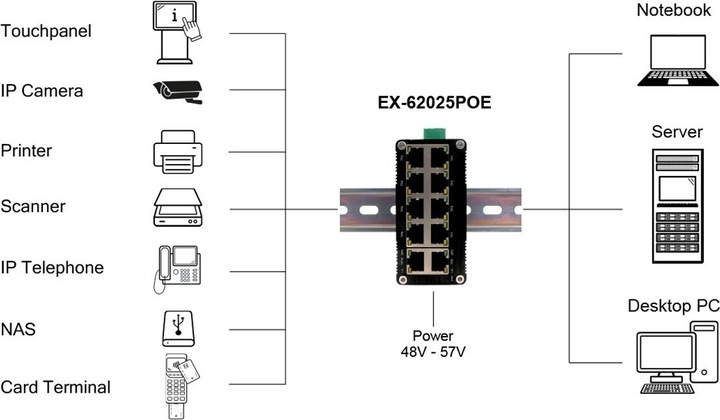

Power up to 8 PoE-capable remote network devices, transfers data and power on one single cable
Fully IEEE 802.3af compliant PoE (PSE) type 1 = 15.40W and IEEE 802.3at PoE+ (PSE) type 2 = 34.20W
Maximum power delivered (PD): Type 1 = 12.95W / Type 2 = 25.50W
Compliant with IEEE 802.3af/at Power Over Ethernet (PoE), Mode/Alternative B
Auto-MDI/MDIX eliminates the need for crossover cables
Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
Supports jumbo frames up to 9KBytes
Plug and play, no configuration and installation required
Terminal block for redundant DC input, 2x 48 V to 57 VDC
Rugged, very compact metal housing, IP40

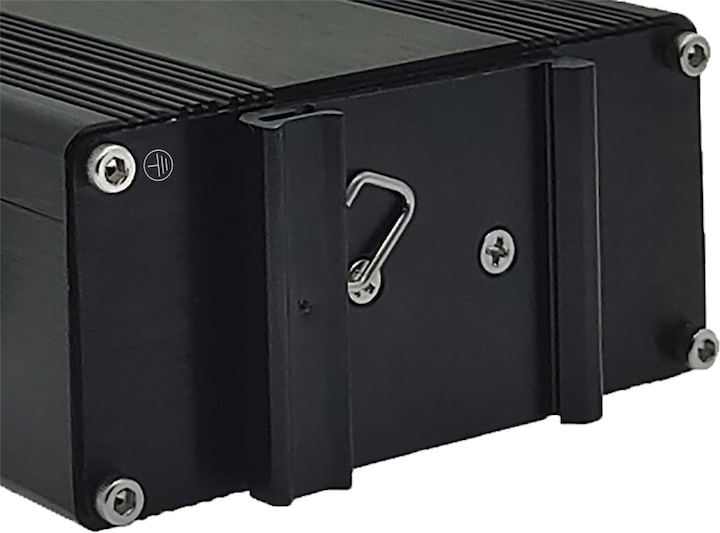

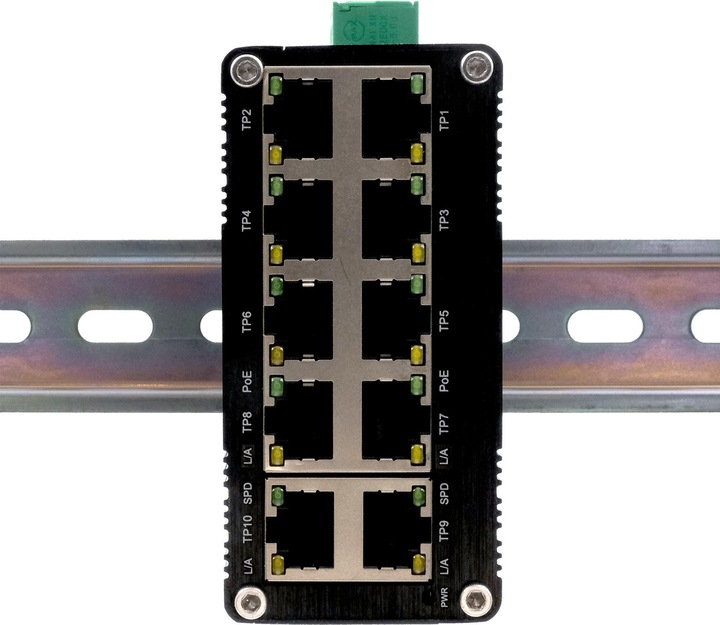

Includes DIN-Rail Kit
Extended operating temperature range from -40°C to +80°C

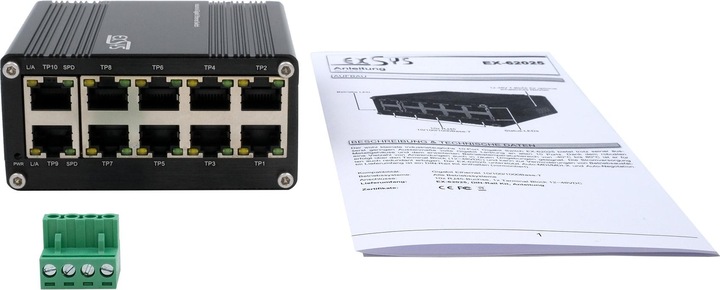

Packaging contents: EX-62025PoE, DIN-Rail Kit (pre-assembled), Manual.
