Ernitec Mercury 7 Analogue VR Dome

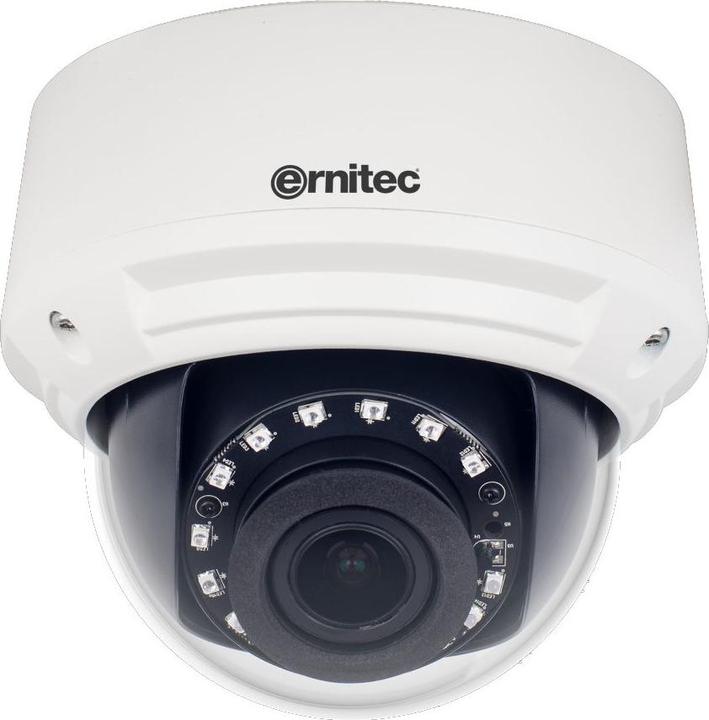

Ernitec 2MP Analog Vandal Dome Camera

Enhance your security with the Ernitec 2MP Analog Vandal Dome Camera, designed for reliable performance in various environments. This camera combines advanced imaging technology with robust construction, making it ideal for both indoor and outdoor surveillance.

Key Features

High-quality imaging:

• Image Sensor: 1/2.8” Progressive Scan CMOS
• Resolution: 1080P (1920×1080) for clear and detailed video.
• Frame Rate: PAL: 25fps, NTSC: 30fps.

Superior low-light performance:

• Minimum Illumination: Color: 0.001 Lux (F1.2, AGC ON); B/W: 0 Lux with IR LED on.
• IR Distance: Up to 30 m (98.4 ft) with 15 IR LEDs for night vision.

Flexible lens options:

• Lens Type: Motorized focus with a focal length of 2.8 ~ 12mm.
• Angle of View: Horizontal: 94.9° ~ 37.1°, Vertical: 50.2° ~ 20.8°.

Robust functionality:

• Pan/Tilt/Rotation: Pan: 0˚ ~ 355˚, Tilt: 0˚ ~ 80˚, Rotation: 0˚ ~ 355˚ for comprehensive coverage.
• Wide Dynamic Range (WDR): Ensures clear images in varying lighting conditions.

User-friendly features:

• OSD Menu: Easy navigation with joystick support.
• Day/Night Modes: Auto, Color, B&W, and Extended options for versatile monitoring.

Durability and design:

• Ingress Protection: Rated IP66 and IK10, ensuring resistance to dust, water, and impact.
• Operating Conditions: Temperature: -10 °C to 55 °C (14°F to 131 °F). Humidity: Less than 85% RH.
• Power Supply: DC12V ±10%, with a maximum power consumption of 4W (IR ON).
• Casing: Sturdy metal construction for enhanced durability.

Specifications Summary:

• Dimensions: Φ130 × 112 mm (φ5.12" × 4.41")
• Net Weight: 0.67 kg (1.48 lb)
• Certifications: CE/FCC compliant.

The Ernitec 2MP Analog Vandal Dome Camera is your go-to solution for effective surveillance, combining high-quality imaging with robust features to meet your security needs.
