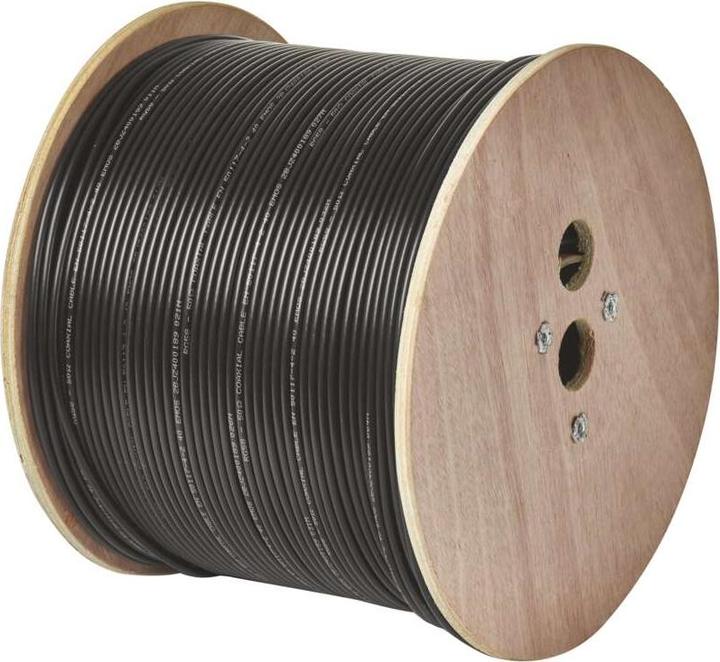

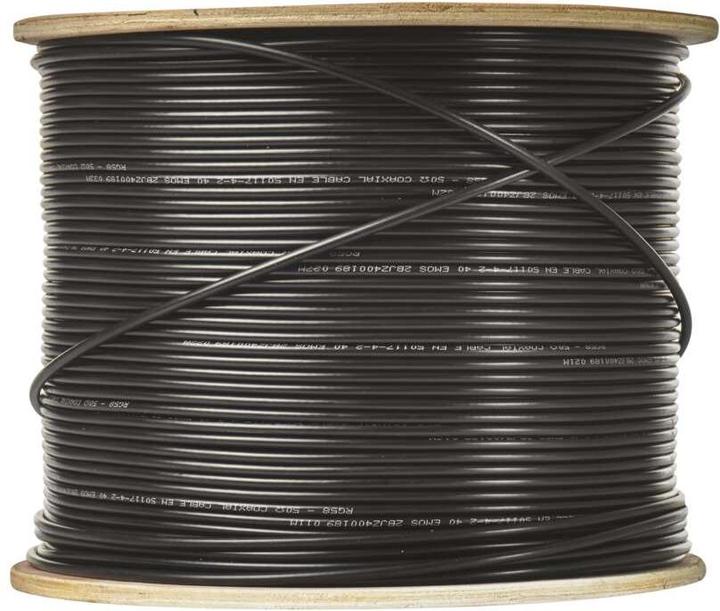

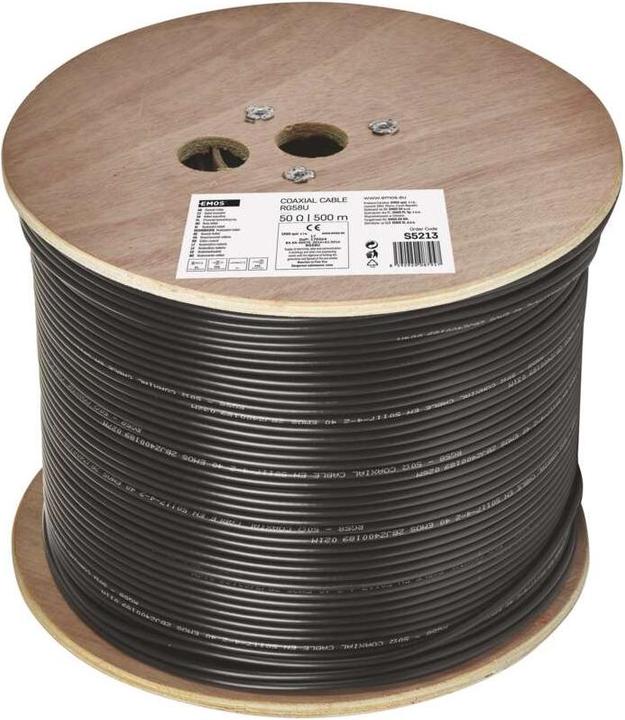

Emos Coaxial cable RG58U, 500m

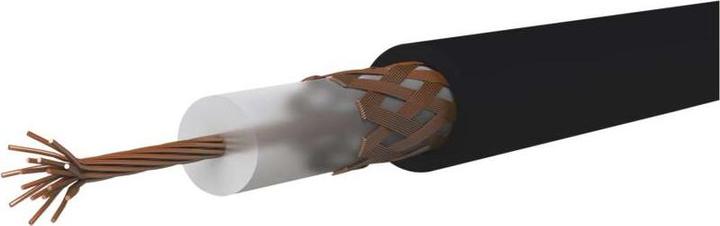

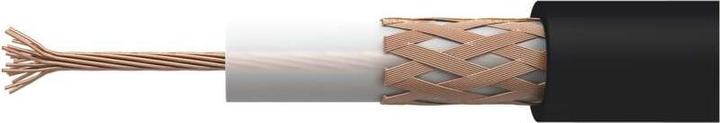

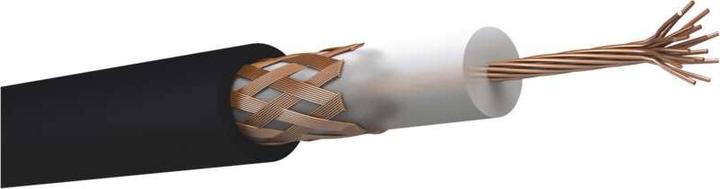

Type of coaxial cable: RG58/U, Impedance: 50 Ohm, Usage: shorter cabling, wiring of telecommunications antennas, UV-resistant, suitable for outdoor use, Material of inner conductor: stranded copper (Cu), Diameter of inner conductor: 17 x 0.19 mm, Dielectric type, average: SPE 3.0 mm, Number of shields: 1, Material of shielding: copper-clad aluminum (CCA), Number of wires in the shielding: 112 x 0.12 mm, Diameter of shielding: 112 x 0.12 mm², Shield coverage: 93%, Diameter of cable jacket: 5 mm, Material of cable jacket: PVC, Color of cable jacket: black, Capacitance (pF/m): 100, Velocity factor: 0.66, Max. attenuation at 20 °C (dB/100m) 10 MHz: 8.5, Max. attenuation at 20 °C (dB/100m) 100 MHz: 14.2, Max. attenuation at 20 °C (dB/100m) 450 MHz: 32.9, Max. attenuation at 20 °C (dB/100m) 650 MHz: 47.2, Min. reflection loss at 20 °C (dB) 300–600 MHz: 18, Min. reflection loss at 20 °C (dB) 600–900 MHz: 16, Min. insertion loss (dB) 10–800 MHz: 65, Max. DC resistance at 20 °C (Ohm/km) - inner core: 37.6, Max. DC resistance at 20 °C (Ohm/km) - outer core: 17.1, Insulation resistance between cores at 20 °C (MOhm/km): 500, Min. bending radius single/multiple: 25/50 mm, Weight (kg/km): 40.5, Min. reflection loss at 20 °C (dB) 10–300 MHz: 20, Storage temperature: -20 °C to +75 °C, Installation temperature: +5 °C to +60 °C, Packaging - length: 500 m, Packaging - type of spool: wooden spool, Packaging - designation of footage: 1–500 m, APE = air dielectric, Fire behavior class: Eca, Hazardous substances: none, Sales packaging: 500 m, wooden spool, Warranty period: 2 years.
