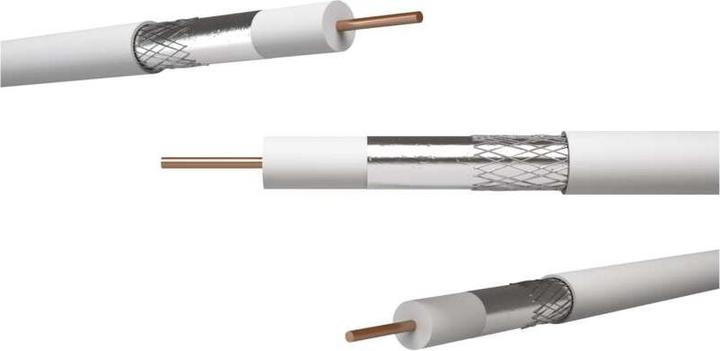

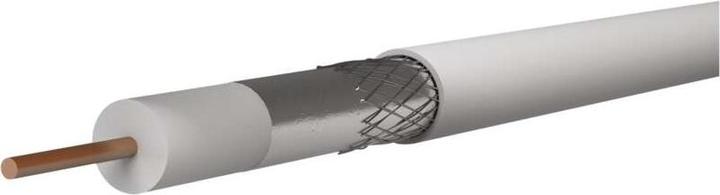

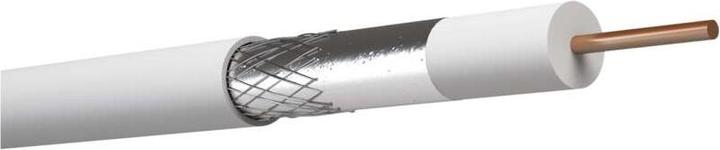

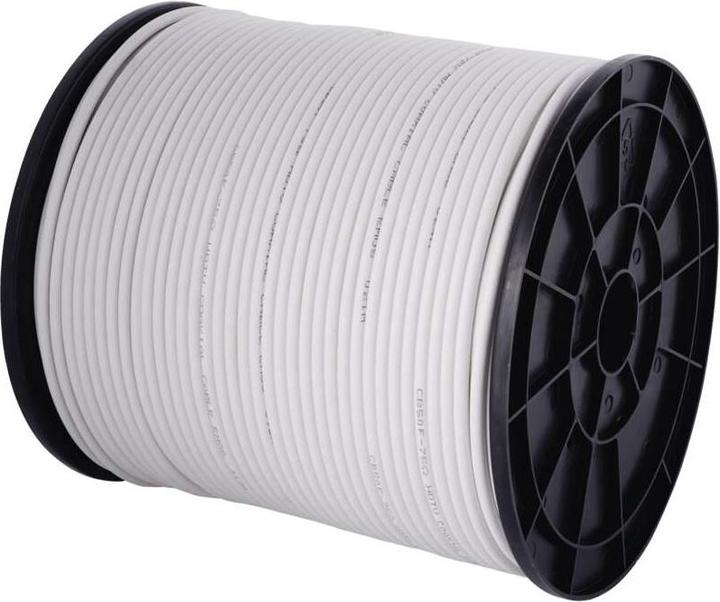

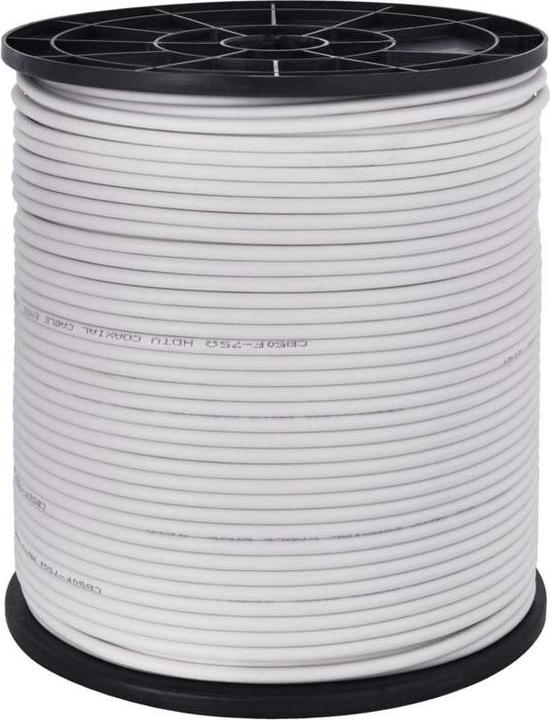

Emos Coaxial cable CB50F, 250m

Type of coaxial cable: CB50F, Impedance: 75 Ohm, Usage: internal wiring, universal cable, Material of inner conductor: copper (Cu), Diameter of inner conductor: 0.9 mm, Dielectric type, average: FPE 4.4 mm, Number of shields: 2, Shielding I foil: 1× Al, Material of shielding: tinned copper (CuSn), Number of wires in shielding: 32× 0.12 mm, Diameter of shielding: 32× 0.12 mm², Shielding coverage: 27%, Diameter of cable jacket: 6.3 mm, Material of cable jacket: PVC, Color of cable jacket: white, Capacitance (pF/m): 56, Velocity factor: 0.81, Max. attenuation at 20 °C (dB/100m) 10 MHz: 2.2, Max. attenuation at 20 °C (dB/100m) 100 MHz: 7, Max. attenuation at 20 °C (dB/100m) 450 MHz: 14.3, Max. attenuation at 20 °C (dB/100m) 650 MHz: 17.8, Max. attenuation at 20 °C (dB/100m) 860 MHz: 20.8, Max. attenuation at 20 °C (dB/100m) 1,000 MHz: 21.8, Max. attenuation at 20 °C (dB/100m) 2,000 MHz: 32, Min. reflection attenuation at 20 °C (dB) 300–600 MHz: 23, Min. reflection attenuation at 20 °C (dB) 600–900 MHz: 20, Min. dusk attenuation (dB) 10 ~ 800 MHz: 75, Max. DC resistance at 20 °C (Ohm/km) - inner core: 29.3, Max. DC resistance at 20 °C (Ohm/km) - outer core: 57.2, Insulation resistance between cores at 20 °C (MOhm/km): 500, Min. bending radius single/multiple: 30/60 mm, Weight (kg/km): 39.5, Min. reflection attenuation at 20 °C (dB) 10–300 MHz: 25, Storage temperature: -20 °C to +75 °C, Installation temperature: +5 °C to +60 °C, Packaging method - length: PVC spool in box, 250 m, Packaging method - type of spool: PVC, Packaging method - designation of footage: 1–250 m, Recommended types of connectors - F-connectors Quickfix (plugged): *K7220, Recommended types of connectors - F-connectors screwed: *K7331, PES = foil layer, FPE = foam dielectric, Fire behavior class: Eca, Hazardous substances: none, Sales packaging: 250 m, box, Warranty period: 2 years.
