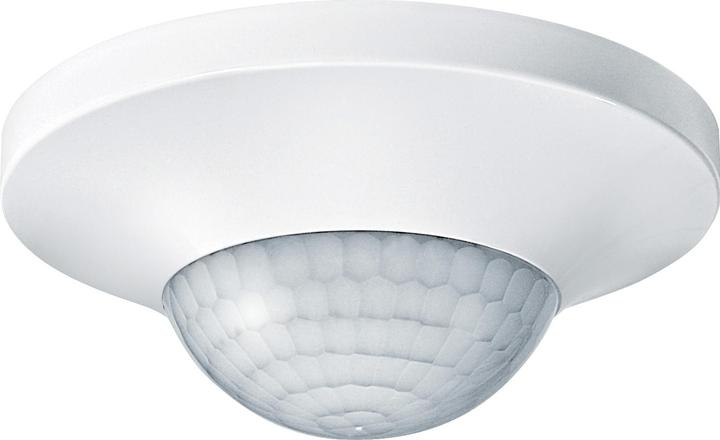

ELSO Presence detector

For controlling all Argus Presence Masters with PL input. The device features four PL outputs. For the control function via PL, a separate wire is required for each PL line in the installation to the respective receiving Master devices. Presence detectors for ceiling mounting indoors. The sensor module detects moving heat sources (e.g., people) within an adjustable detection range and activates a stair lighting duration. The Argus Presence Slave sends this information to the Argus Presence Master upon detecting movement. The Master controls the lighting. Brightness measurement occurs at the installation location of the Master. Suitable for installation in a 60mm flush-mounted box or in the surface-mounted housing available as an accessory. With claw and screw mounting. Equipped with screw terminals. Functions: global control via four PL outputs. Brightness-independent stair lighting function. Nominal voltage: AC 220/230 V, 50/60 Hz. Outputs: 4xPL. Neutral wire: required (3-wire system). Connection cross-section: max. 2x2.5 mm². Detection angle: 360 degrees. Number of levels: 6. Number of zones: 136. Number of motion sensors: 4. Recommended mounting height: 2.5 m. Range: radius of max. 7 m (at a mounting height of 2.50 m). Sensitivity: continuously adjustable. Color: polar white.
