ELSO ELG176212

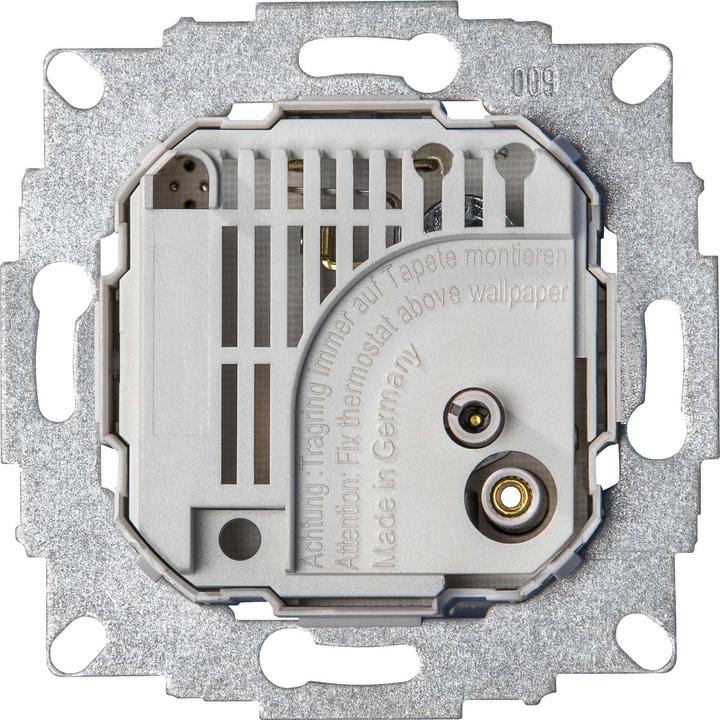

Elso temperature controller insert ELG176212
Manufacturer: Elso
Designation: Temperature controller insert
Type: ELG176212
Version: On/Off
Type of power supply: 230 V AC
Connection: three/four-wire
With receiver: no
Measuring range: 5...30 °C
External sensor: no
Thermal feedback: parallel
Control characteristic: other
Suitable for heating: yes
Number of outputs heating: 1
Suitable for cooling: no
Differential value: 0.5 K
Differential adjustable: no
Temperature readable: no
With noise level indicator: no
Version of sensor/sensor: Bimetal
Mounting: Flush-mounted
With display: no
Operation: rotary
With drinking water circuit: no
Contact version: NC contact
Max. contact voltage: 230 V
Voltage of contacts: 230 V
Max. contact load: 10 A
Protection class (IP): IP30
Protection class (NEMA): 1
Explosion-proof: no
Colour: other
Height: 70 mm
Width: 70 mm
Depth: 42 mm
Diameter: 57 mm
Temperature controller class: I
Power consumption in standby mode: 0 W

Elso temperature controller insert ELG176212: further details
Separate connection for time-controlled night setback. With thermal feedback, insert when using control valves (currentless closed). Insert without claw fixing.
