Elite SRA-SE5016DP - 5 GHz, 2x 16 dBi Sector Antenna Box

IT ELITE SRA-SE50016DP - 5 GHz, 2x 16 dBi Sector Antenna Box

The antenna with a multipurpose housing operates in the 5 GHz band with two independent sector antennas offering 16 dBi gain and both vertical and horizontal polarization. It is the ideal solution for MIMO and Nstreme dual configurations.

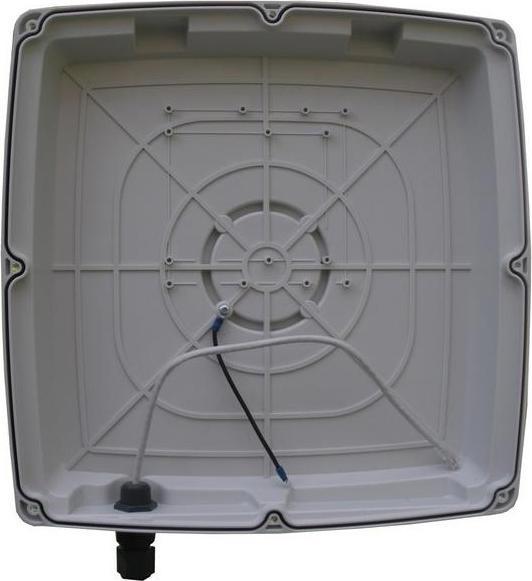

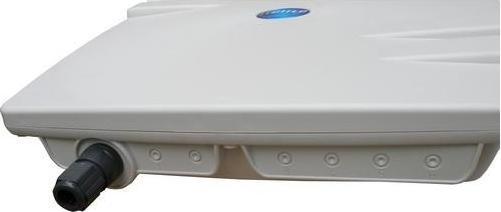

The package includes a waterproof outdoor enclosure with a sector antenna and ample space for RouterBOARDs or other electronic accessories. The enclosure is equipped with a special waterproof RJ-45 Ethernet port for easy connection to the internet network and PoE.

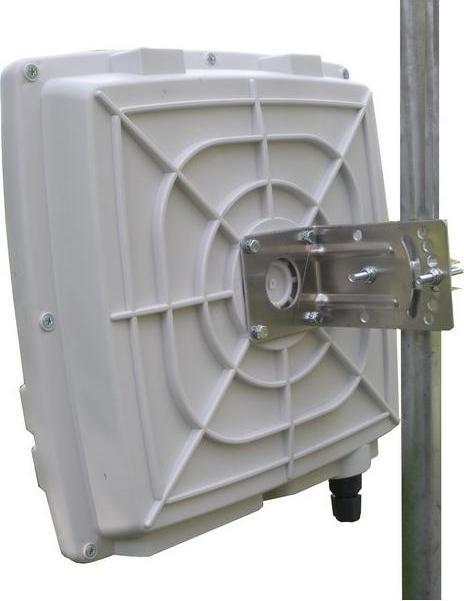

Perfectly suited for use in challenging weather conditions. The material is corrosion-resistant and can also be used in areas with high salt content. The high quality of the mast mounting ensures easy and smooth tilt adjustment as well as shock-resistant operation.

The antenna can be used as Customer Premise Equipment and also as a small base station. The enclosure features appropriate mounting holes for MikroTik RouterBOARDs of the 411, 433, and 600 series.

Features:

• 2x 16 dBi sector gain
• Dual polarization H and V in one housing
• Special weatherproof enclosure for outdoor use
• Suitable for MikroTik RouterBOARDs
• High-quality construction
• Robust mounting elements
• Easy alignment and installation
• Designed for use in any weather

Applications:

• 5 GHz band Wireless LAN
• Nstreme dual configuration
• 802.11n/MIMO standard
• IEEE 802.11a WLAN systems
• Point-to-multipoint applications

Electrical Properties:

• Frequency: 5.1 - 5.9 GHz
• Gain: 2x 16 dBi
• Polarization: Dual H and V
• Horizontal beamwidth: 90° (-3 dB), 120° (-6 dB)
• Vertical beamwidth: 10°
• VSWR:
• Impedance: 50 Ohm
• Front to Back ratio: > 35 dB
• Port Isolation: > 45 dB
• Lightning protection: DC grounding

Housing Properties:

• Technology: Microstrip
• Material: UV-protected
• Color:...
