Elbro Knx Argus

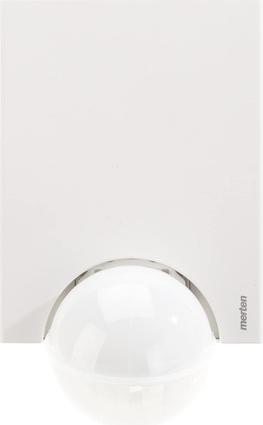

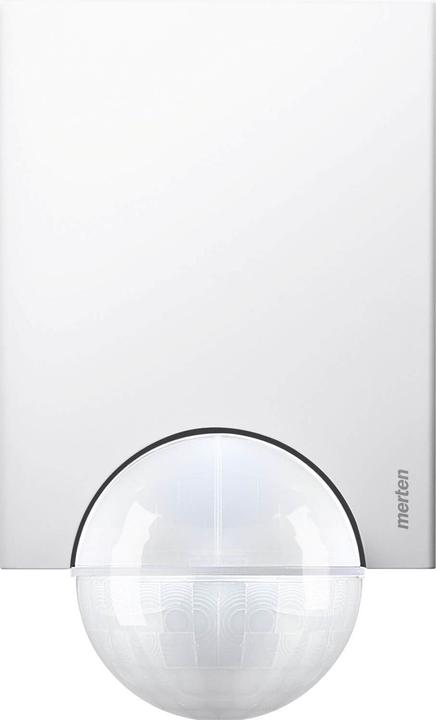

KNX Argus 220. KNX motion detector for outdoor use. 220° area monitoring for large house fronts and sections. With integrated bus coupler. The physical address is programmed with a magnet. 360° short-range detection (approx. 4 m radius). Large wiring space and plug-in system. Loop formation is possible. LED function display for quick alignment at the installation site. The control elements are protected under an easily accessible cover plate. Flexibly adjustable sensor head. Exclusion of individual lens areas is possible. Mounting on walls and ceilings without additional accessories is possible. Can be mounted on indoor/outdoor corners and stand pipes with a mounting bracket. KNX software functions: Five motion blocks: Up to four functions can be triggered per block. Telegrams: 1 bit, 1 byte, 2 bytes. Normal operation, master, slave, security pause, deactivation function. Sensitivity, brightness, and stair light time can be adjusted via ETS or the potentiometer. Self-adjusting stair light time. Detection angle: 220°. Range: max. 16 m. Number of steps: 7. Number of zones: 112 with 448 switching segments. Light sensor: continuously adjustable from approx. 3 - 1000 Lux (infinite Lux: motion detection is independent of the sensor head's position). Time: externally adjustable from 1 s to approx. 8 min in 6 steps or via ETS from approx. 3 s to approx. 152 hours. Sensitivity: continuously adjustable. Possible settings for the sensor head: Wall mounting: 9° up, 24° down, 12° left/right, ±12° axial. Ceiling mounting: 4° up, 29° down, 25° left/right, ±8.5° axial. Protection class: IP 55. Contents: With cover plate and segments to limit the detection area, screws, and dowels. Color: polar white.
