EGB Promotional package Villa 2 family door station set

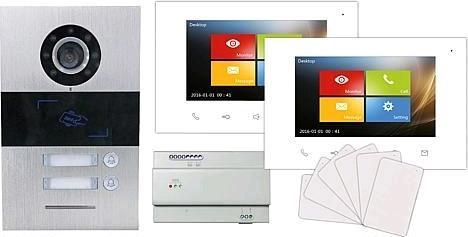

Video intercom set Villa

This video intercom set features 2-wire technology and includes a flush-mounted video door station made of vandal-resistant aluminum. It is equipped with a CMOS PAL camera with 0.3 megapixels and a 90° field of detection, which can be manually adjusted. The door station also includes LED lighting, a bell push button with a nameplate, and an integrated RFID interface that supports up to 200 cards or key fobs for door opener control.

Connection terminals are provided for the bus line, and there is a potential-free door release contact for an external power supply of 8-12V, with an adjustable switching time of 1-10 seconds. An external door release button or code lock is also included, along with a sabotage contact. The dimensions of the door station are 120x194x8mm, and it comes with a flush-mounted metal box measuring 100x180x40mm. The product has an IP44 rating.

The monitor Villa M is a 7" color touch-screen monitor that includes a wall bracket and a hands-free function. The ringing tone can be switched off, and it features adjustable ringing tone volume, brightness, and contrast. Up to four monitors can be connected in parallel per bell button, allowing for internal speech traffic and call differentiation between external, internal, and floor calls. The system also supports image recording with automatic screenshots via internal memory and has an SD card slot for micro SDHC cards up to 32GB for video recording. The power supply is 30V-DC, and the monitor is available in white.

The power supply unit Villa NG is designed for distribution installation, with an input of 230V-AC and an output of 30V-DC for the bus line. It includes status LEDs and measures 144x90x64mm. The set also includes six RFID chip cards Villa K, each measuring 85x53mm and in white.

Technical data

EAN: 4027236046967

Product group: Intercom systems and accessories

Manufacturer: EGB

Supplier article number: Villa Set 2

Version: 2 call buttons

Contents: 2 monitors.
