Product details
Affordable entry-level solution for modern small businesses. The CAP300 is a powerful Wi-Fi solution designed for SMB environments where excellent network performance is essential. The product supports the latest 2x2 IEEE 802.11N technology for Wi-Fi data transfer speeds of up to 300 Mbps. With a combination of extensive features and high user-friendliness, the CAP300 is the ideal solution for demanding daily business transactions. This is further enhanced by its industrial-grade construction and the option for easy wall mounting.

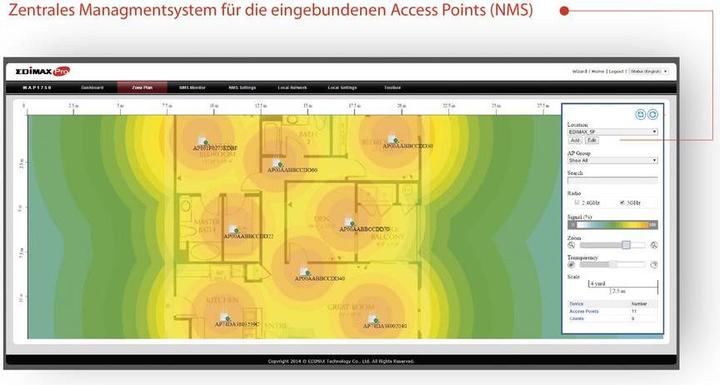

The EdimaxPro series offers a wide range of potential applications for businesses, schools, universities, hospitals, and hotels that require security, flexibility, and speed. Multiple SSIDs can be configured for individual departments or user groups, and the integrated RADIUS server allows for additional verification with a scalable AP group architecture for centralized management of the connected access points.
The capacity for high signal density is designed for up to 100 clients working simultaneously in the intranet or internet. It is ideal for BYOD (Bring Your Own Device) workplaces or other environments with a large number of mobile clients and devices that require consistent data roaming quality between access points. With supported PoE (Power over Ethernet) and an intuitive web-based user interface with extensive management options, the access points are flexible for use by MIS (Management Information System) departments and their network administrators. Additionally, the optional security cover and detection system for unsecured access points protect against theft and unauthorized access.
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n |
Wi-Fi frequency band | Dual band |
PoE Standard | 802.3af (PoE) |
Operating modes | Wi-Fi client |
Area of application | Business |
Number of RJ45/LAN ports | 1 |
Max. port speed | 1000 Mbit/s |
Item number | 6054796 |
Manufacturer | Edimax Pro |
Category | Access points |
Manufacturer no. | CAP300 |
Release date | 22.12.2016 |
Operating modes | Wi-Fi client |
Max. number of clients | 50 x |
Number of antennas | 2 x |
Antenna gain | 2.82 dB |
Number of RJ45/LAN ports | 1 |
Max. port speed | 1000 Mbit/s |
Access Point Functions | PoE capable |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n |
2.4 GHz transfer rate | 300 Mbit/s |
Wi-Fi frequency band | Dual band |
Wi-Fi encryption | WPA, WPA2 |
Area of application | Business |
Power supply | Electrical connection |
PoE Standard | 802.3af (PoE) |
Power consumption | 6.50 W |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Bracket for ceiling mounting, CAP300 Access Point |
Length | 17.60 cm |
Width | 17.60 cm |
Height | 3.20 cm |
Weight | 287.30 g |
Length | 29 cm |
Width | 22 cm |
Height | 7 cm |
Weight | 760 g |
