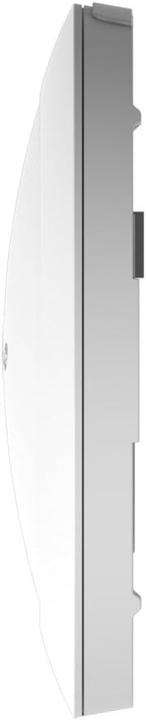

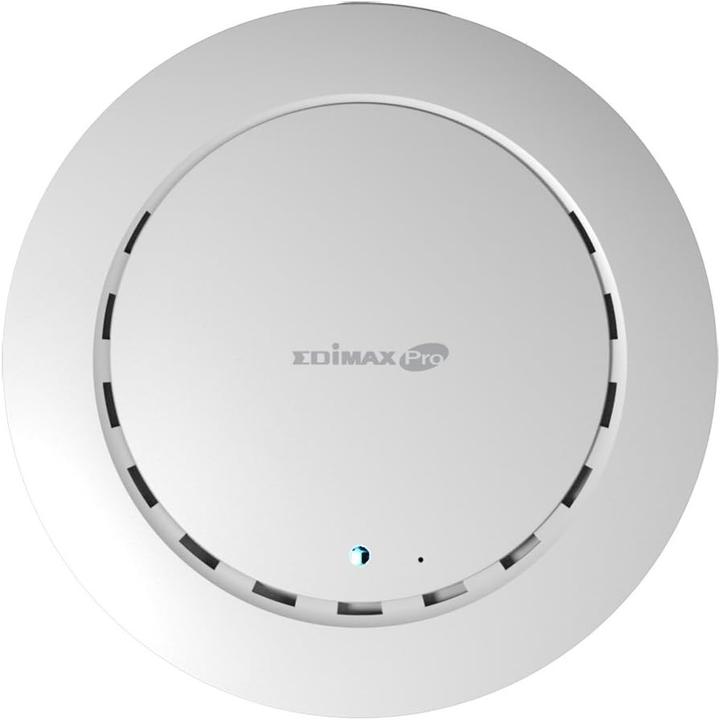

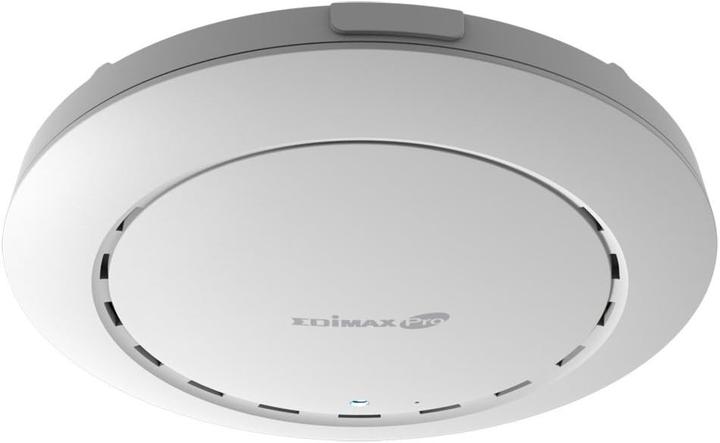

Edimax Pro CAP1300: Managed PoE Access Point

866 Mbit/s
Delivered between Wed, 8.4. and Thu, 9.4.
Only 1 piece in stock at third-party supplier
Supplied by
free shipping

Product details

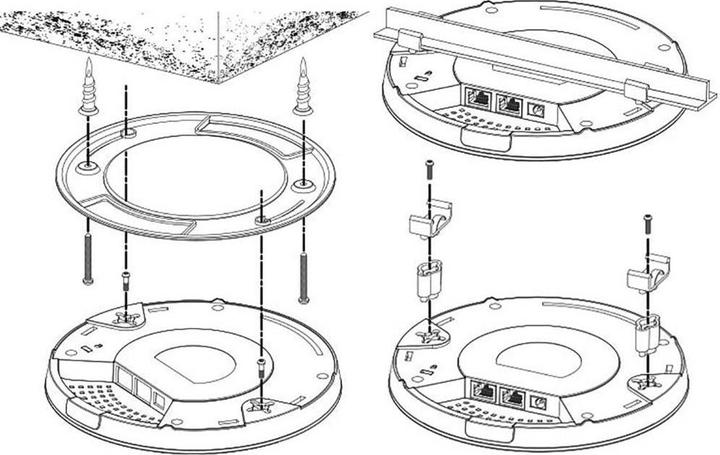

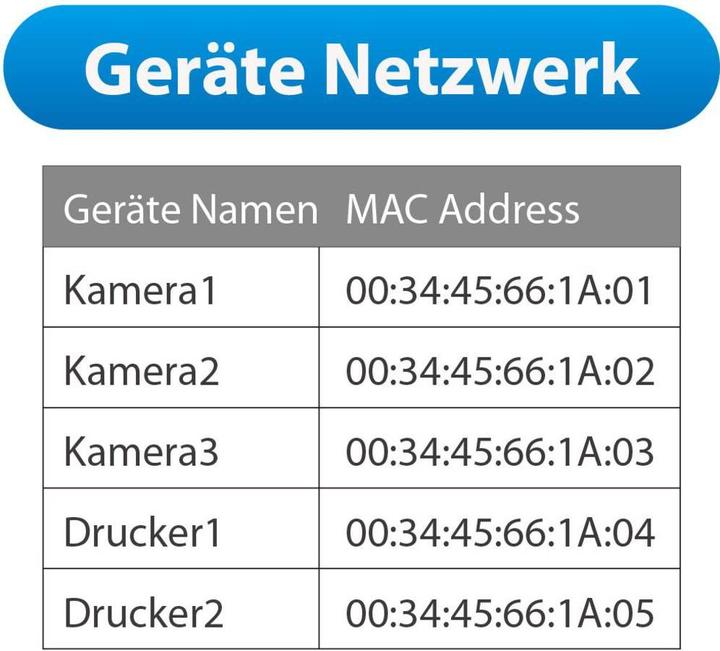

Powerful solution for modern business. The CAP1300 is a high-performance WLAN solution designed for SMB applications where excellent network performance is essential. The product supports the latest 3x3 IEEE 802.11AC Wave 2 technology for simultaneous dual-band WLAN data transmission speeds of up to 1300 Mbps. The device supports MU-MIMO (Multiple User – Multiple In Multiple Out) and Beamforming. Reliability and performance are ensured by AirTime Fairness, Band Steering, and enhanced WLAN range. Combined with industrial-grade processing, high-speed WLAN data transmission, user-friendly operation, and many other features, such as the convenient ceiling mount kit, the CAP1300 is the ideal solution for businesses. The Edimax Pro series offers a wide range of potential applications for companies, schools, universities, hospitals, and hotels that require security, flexibility, and speed. The capacity for high signal density is designed for up to 200 clients working simultaneously on the intranet or the internet. It is ideal for BYOD (Bring Your Own Device) workplaces or other environments with a large number of mobile clients and devices. Multiple SSIDs can be configured for individual departments or user groups, and the integrated RADIUS server allows for additional verification with a scalable AP group architecture for centralized management of the connected access points. Furthermore, flexibility in deployment is provided by 802.11r/k Fast Roaming for seamless transitions between access points, Power over Ethernet support (PoE), and an intuitive web-based management user interface with extensive management options for corporate network administrators.

Key specifications

Operating modes
Access point
Number of RJ45/LAN ports
2
Max. port speed
1000 Mbit/s
Wi-Fi standard
Wi-Fi 1 / 802.11bWi-Fi 2 / 802.11aWi-Fi 3 / 802.11gWi-Fi 4 / 802.11nWi-Fi 5 / 802.11ac
Wi-Fi frequency band
Dual band
Area of application
BusinessHome
PoE Standard
802.3af (PoE)

General information

Item number
7945621
Manufacturer
Edimax Pro
Category
Access points
Manufacturer no.
CAP1300
Release date
15.2.2018

Access point properties

Operating modes
Access point
Max. number of clients
100x
Number of antennas
4x

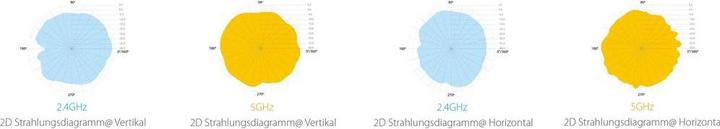

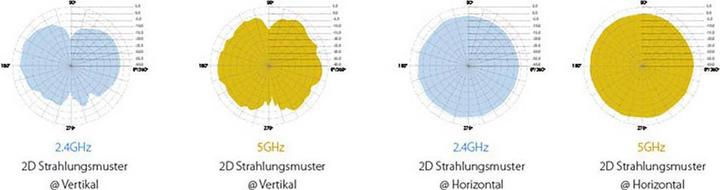

Antenna gain
7 dB
Long range coverage
0.15 km

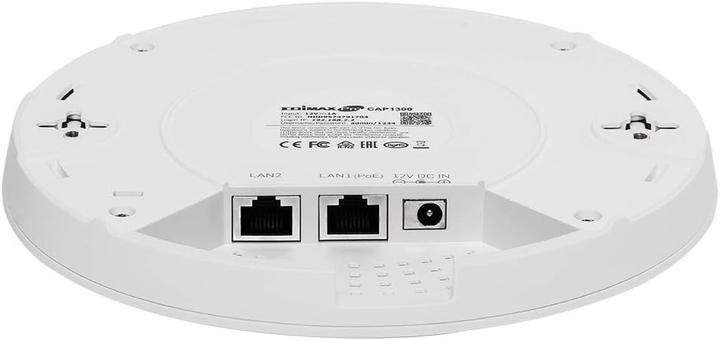

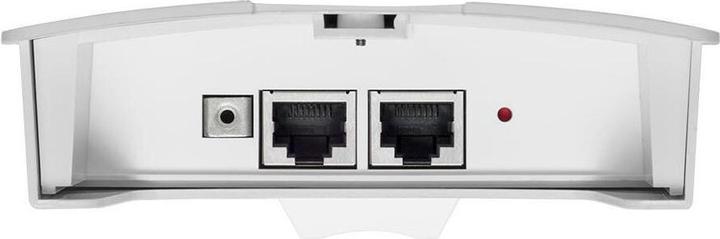

Number of RJ45/LAN ports
2
Max. port speed
1000 Mbit/s

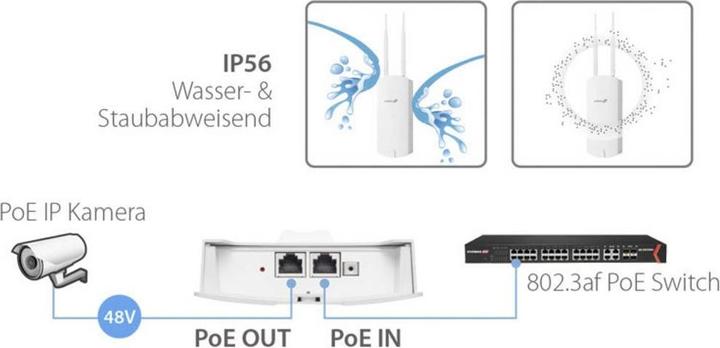

Protection type (IP code)
IP56
Access Point Functions
PoE capableSeamless roamingWireless uplink

Wi-Fi standard

Wi-Fi standard
Wi-Fi 1 / 802.11bWi-Fi 2 / 802.11aWi-Fi 3 / 802.11gWi-Fi 4 / 802.11nWi-Fi 5 / 802.11ac
5 GHz transfer rate
866 Mbit/s
2.4 GHz transfer rate
400 Mbit/s
Wi-Fi frequency band
Dual band
Wi-Fi encryption
WPA-EnterpriseWPA2-Enterprise

Application range

Area of application
BusinessHome
Installation place
CeilingWall

Power supply

Power supply
PoE
PoE Standard
802.3af (PoE)
Power consumption
10.60 W

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
97.08 kg
Climate contribution
CHF 2.30

Scope of delivery

Scope of delivery
Lan (RJ-45)

Product dimensions

Length
17.60 cm
Width
17.60 cm
Height
3.20 cm
Weight
342 g

Package dimensions

Length
29.40 cm
Width
22.30 cm
Height
7 cm
Weight
846 g

30-day right of return
24 Months Warranty (Bring-in)
