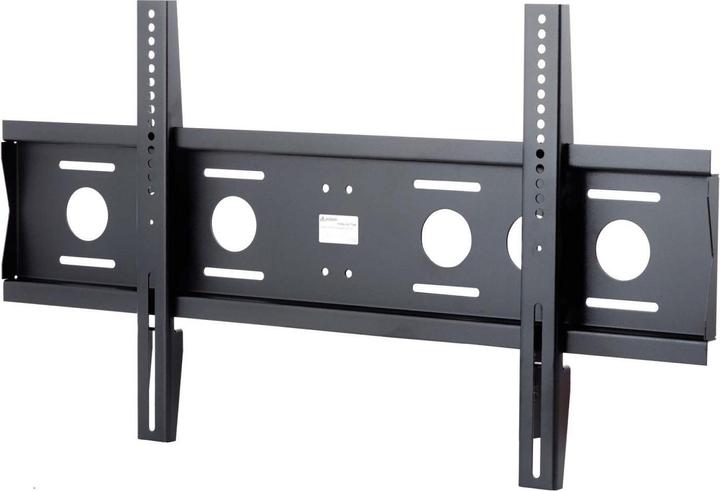

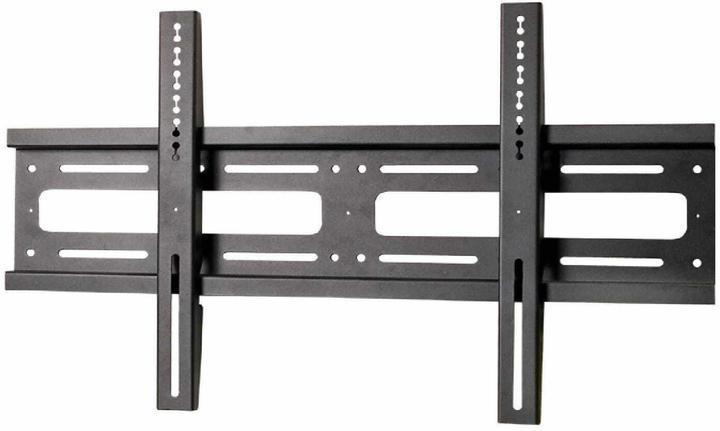

The bracket allows easy and quick mounting: TWB1 consists of a rear panel that is fixed to a stone or concrete wall and two front panels that are mounted on the back of the unit. During installation, the screen is conveniently hung in the wall plate together with the two front panels. This universal bracket was especially designed for TV sets that have a large distance between the mounting holes (e.g. Philips). The Universal Mount comes with a variety of screws and washers for different manufacturers and device types. TWB1 can be used directly for wall mounting or combined with various adapters for swivel arm, trolley or ceiling mounting.
VESA wall mount | 100 x 100 mm, 200 x 100 mm, 200 x 200 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 75 x 75 mm |
Max. screen diagonal (inch) | 75" |
Max. Wall distance | 4.10 cm |
Installation place | Wall |
Max. load | 80 kg |
Number of monitors | 1 |
Item number | 5822490 |
Manufacturer | edbak |
Category | TV mounting solutions (universal) |
Manufacturer no. | TWB1 |
Release date | 19.4.2007 |
Colour | Black |
Exact colour description | Black |
Material group | Metal |
Material | Steel |
Installation place | Wall |
VESA wall mount | 100 x 100 mm, 200 x 100 mm, 200 x 200 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 75 x 75 mm |
Max. screen diagonal (inch) | 75" |
Min. screen diagonal (inch) | 60" |
Max. Screen diagonal (cm) | 190.50 cm |
Min. screen diagonal (cm) | 125 cm |
Max. load | 80 kg |
Max. Wall distance | 4.10 cm |
Min. wall distance | 3.80 cm |
Number of monitors | 1 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 piece |
Length | 38 mm |
Width | 900 mm |
Height | 490 mm |
Depth | 3.80 mm |
Weight | 4600 g |
Length | 93 cm |
Width | 4 cm |
Height | 22 cm |
Weight | 4.98 kg |
