Eberle Controls UP room controller

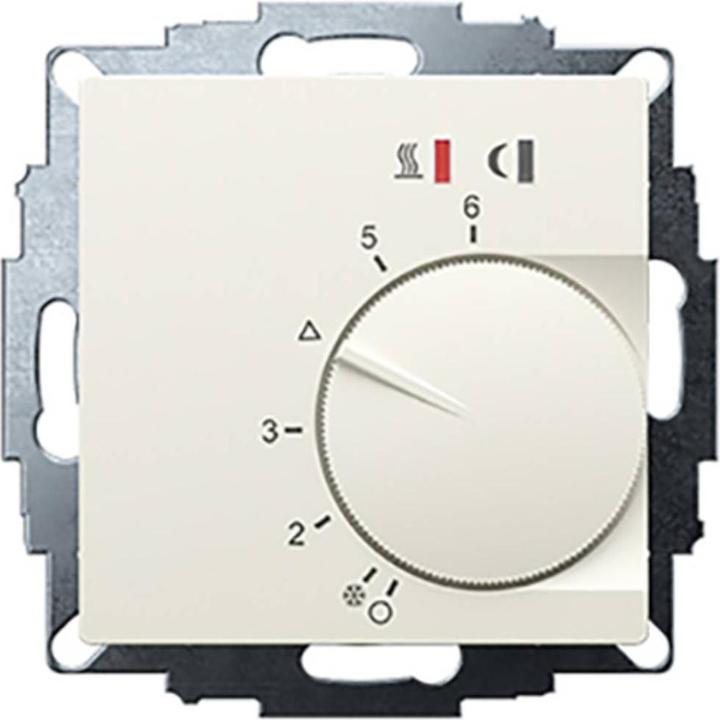

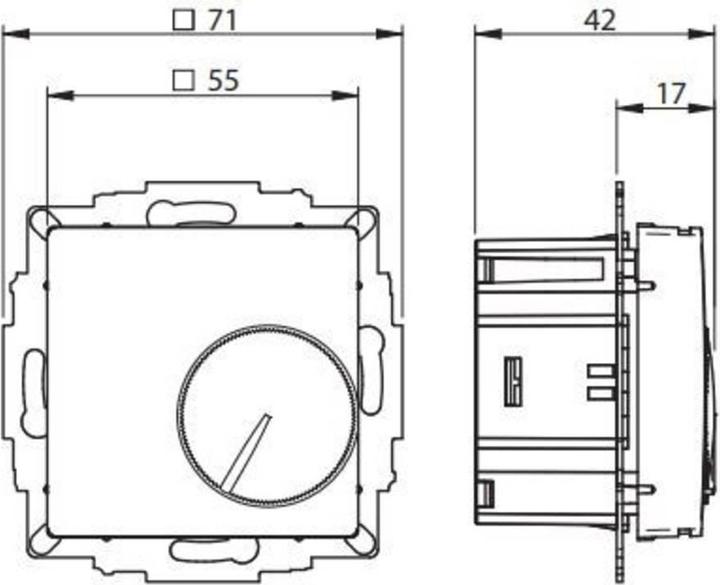

Eberle Controls Flush-mounted room controller 5-30C AC230V UTE2800-R-RAL1013M55 Manufacturer :Eberle Controls Designation :Flush-mounted room controller 5-30C AC230V 16A, 1 NO contact Type :UTE2800-R-RAL1013M55 Control type On/Off :yes Control type modulating :yes Type of power supply :230 V Connection :other With receiver :no Measuring range :5...30 °C External sensor :no With thermal feedback :yes Control characteristic :other Suitable for heating :yes Number of outputs heating :1 Suitable for cooling :no Differential adjustable :no Selector switch for heating and hot water with heating :no Version of sensor/sensor :Resistance sensor Temperature readable :no Relative humidity readable :no With display :no Operation :Rotary Contact version :NO contact Max. voltage of the contacts :230 V Voltage of contacts :230 V Max. Contact load :16 A Protection class (IP) :IP30 Explosion-proof :no Colour :white RAL number :1013 Width :55 mm Depth :17 mm Height :55 mm Compatible with Apple HomeKit :no Compatible with Google Assistant :no Compatible with Amazon Alexa :no IFTTT support available :no Eberle Controls UP room controller 5-30C AC230V UTE2800-R-RAL1013M55: more details Electronic flush-mounted thermostat is suitable for controlling electric heaters, heat/circulation pumps, etc... Control or monitoring of temperatures in living rooms, offices and hotels. Suitable for all common switch ranges. Cream white matt, 55x55 cover with knob. Various parameters can be set on the unit: Temperature setback, current as well as control algorithm (pulse width modulation or 2 point control). When the clock terminal is switched on, the unit regulates to a lower temperature (adjustable 3.5C / 6C / 9C). With LED status indicators. Mains switch (on/off) can be operated via setting wheel. Adjustable range restriction in the adjustment knob as a heating cost brake. A captive screw with threaded insert for fastening the housing cover as well as practical plug-in terminals facilitate installation. Mounting in 55 mm flush-mounted box. , EAN: 4017254167553.
