Eberle Controls Eberle UTE 1002-RAL9010-G-55 Flush-mounted room thermostat 5 to 30°C

Eberle Controls UP Room Controller 5-30°C AC24V UTE 1002-RAL9010-G55

Manufacturer: Eberle Controls
Designation: UP Room Controller 5-30°C AC24V
Type: UTE 1002-RAL9010-G55
On/Off Control Type: yes
Modulating Control Type: yes
Communication Protocol: other
Power Supply Type: 24 V
Connection: other
With Receiver: no
Measuring Range: 5..30 °C
External Sensor: no
With Thermal Feedback: yes
Control Characteristic: other
Suitable for Heating: yes
Number of Heating Outputs: 1
Suitable for Cooling: no
Differential Value: 0.5 K
Adjustable Differential: no
Switch for Heating and Hot Water with Heating: no
Sensor/Probe Design: Bimetal
Temperature Readable: no
Relative Humidity Readable: no
With Display: no
Operation: Rotary
Contact Type: Normally Closed (NC)
Max. Voltage of Contacts: 24 V
Max. Contact Load: 10 A
Protection Class (IP): IP30
Explosion-Proof: no
Color: white
RAL Number: 9010

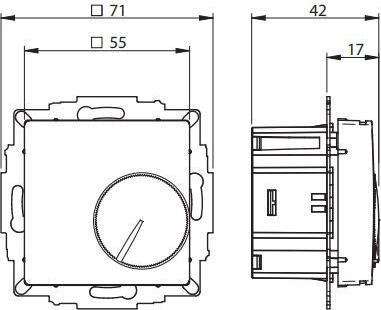

Width: 55 mm
Depth: 16 mm
Height: 55 mm
Temperature Controller Class: I
Power Consumption in Standby: 0 W
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT Support Available: no

Eberle Controls UP Room Controller 5-30°C AC24V UTE 1002-RAL9010-G55: additional details

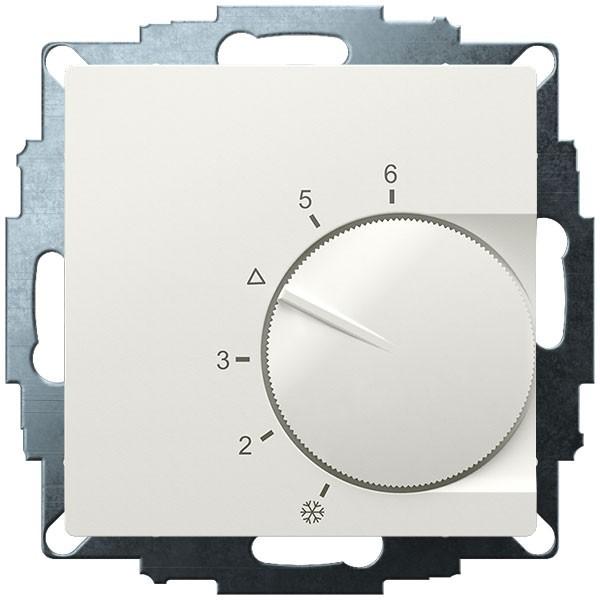

Electromechanical flush-mounted room temperature controller for regulating or monitoring temperatures in living spaces, offices, and hotels. Fits into all common switch programs. Glossy polar white, 55x55 cover with knob. Suitable for water-based and electric heating systems. The thermal feedback achieves a very small switching differential. When connecting to the clock terminal, the temperature is regulated to about 4K lower. Adjustable range limitation in the adjustment knob serves as a heating cost brake. A non-removable screw with a threaded insert for securing the housing cover, as well as practical plug terminals, facilitate installation. Mounting in a 55 mm flush-mounted box.
