Eaton Motor switch 3P 55 kW 80-100A NZMB1-M100 (265714)

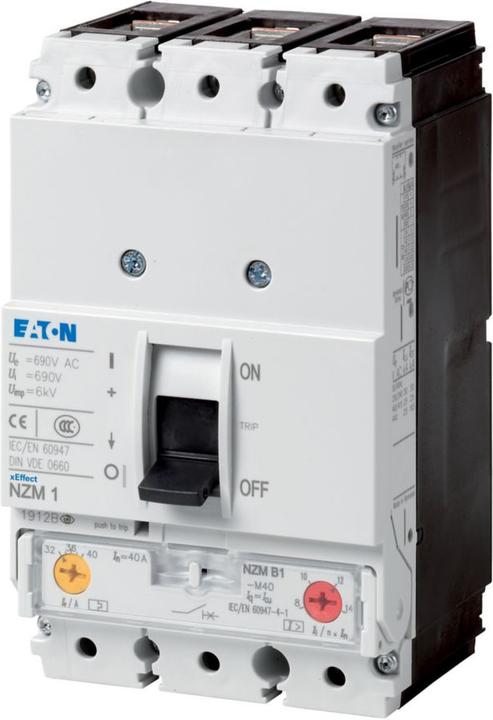

Eaton Circuit Breaker NZMB1-M100

Manufacturer: Eaton
Designation: Circuit Breaker 3p. 100A
Motor Protection Type: NZMB1-M100
Overload Release Current Setting: 80..100 A
Setting Range of the Instantaneous Short-Circuit Release: 800..1250 A
With Thermal Protection: yes
Phase Failure Sensitive: yes
Tripping Technology: Thermomagnetic
Rated Operating Voltage: 440 V
Rated Continuous Current Iu: 100 A
Rated Operational Power at AC-3, 230 V: 30 kW
Rated Operational Power at AC-3, 400 V: 55 kW
Power Loss: 23.9 W
Connection Type Main Circuit: Other
Design of the Operating Element: Toggle Lever
Device Type: Built-in Device
Fixed Installation Technology
With Integrated Auxiliary Switch: no
With Integrated Under-Voltage Release: no
Number of Poles: 3
Rated Short-Circuit Breaking Capacity Icu at 400 V, AC: 18.5 kA
Protection Class (IP): IP20
Height: 145 mm
Width: 90 mm
Depth: 88 mm

Eaton Circuit Breaker NZMB1-M100: Additional Details
The circuit breakers of the NZM..-M series cover all application cases with just four compact sizes and are suitable for the IEC market. Installation is always flexible due to modular functional groups. With thermomagnetic release for motor protection. Notes: with phase failure sensitivity, tripping class 10A, IEC/EN 60947-4-1, IEC/EN 60947-2, circuit breakers meet all requirements of the usage category AC-3.
