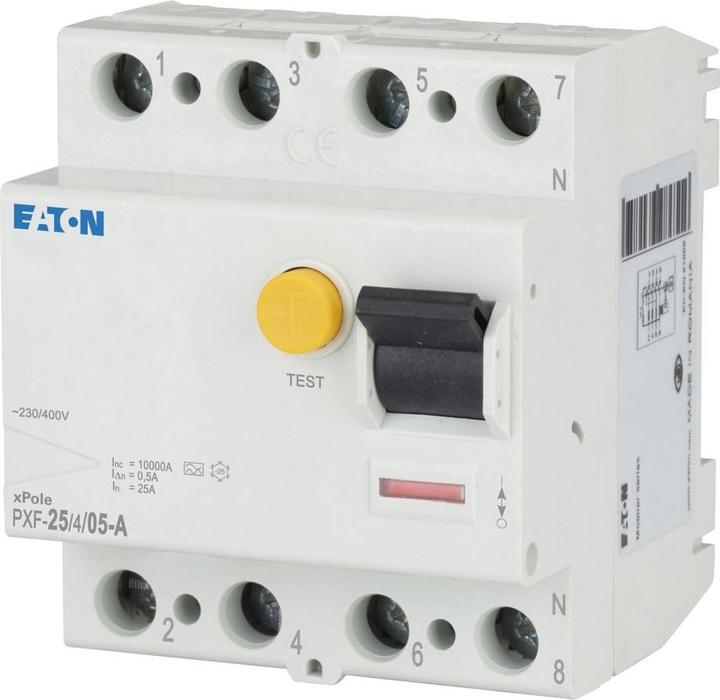

Eaton Ground fault circuit interrupter PXF-25/4/05-A

Ratings
BrandMore from Eaton
Delivered between Thu, 21.8. and Sat, 6.9.

Product details

Number of poles: 4P
Rated current: 25 A
Tripping sensitivity: 500 mA
AC rated voltage: 400 V
Mounting type: DIN rail mounting
Range: PXF
Series: PXF-A

DIN VDE 0664 Part 10, IEC / EN 61008. Series PXF-A, 4-pole. Residual current circuit breaker, conditionally current-resistant 250 A, pulse current sensitive, Type A. Contour and mounting compatible with other devices in the P series. Double comfort terminal lift/jaw at the top and bottom. Free choice of mounting arrangement at the top and bottom. Free terminal space despite mounted terminal. Protects against special, unfiltered types of DC fault currents. True contact position indication. Tripped indication via signal contact. Auxiliary switch can be retrofitted.

Key specifications

Circuit breaker type
Fault current circuit breaker
Length
70.50 mm
Width
4 mm
mounting style
Top-hat rail
number of poles
4
Item number
9717429

General information

Manufacturer
Eaton
Category
Residual-current device
Manufacturer no.
PXF-25/4/05-A
Release date
24.9.2018
External links
Manufacturer's site (de)

Circuit Breaker Features

Circuit breaker type
Fault current circuit breaker
mounting style
Top-hat rail
number of poles
4
Tripping characteristic
A
Rated current
25 A
Rated current
0.5 A
Rated voltage
400 V
voltage type
AC
Rated insulation voltage Ui
440 V
Residual current (rated differential current)
0.50 A
Protection type (IP code)
IP20

Origin

Country of origin
Romania

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
70.50 mm
Width
4 mm

30-day right of return if unopened
24 Months Warranty (Bring-in)
