Eaton CDWA-01/3a xComfort door, window contact

Eaton Door / Window Sensor CDWA-01/3a

Manufacturer: Eaton
Description: Door / Window Sensor warm white
Type: CDWA-01/3a
KNX Bus System: no
KNX Radio Bus System: no
Radio Bus System: yes
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: xComfort
Bidirectional Radio: yes
Design: other
Mounting Type: flush-mounted
With Bus Coupling: no
With DCF77: no
Acoustic Signal: no
With Heating: no
Color: white
RAL Number (similar): 9003
Analog Input: no
Weather Station: no
Protection Class (IP): IP20

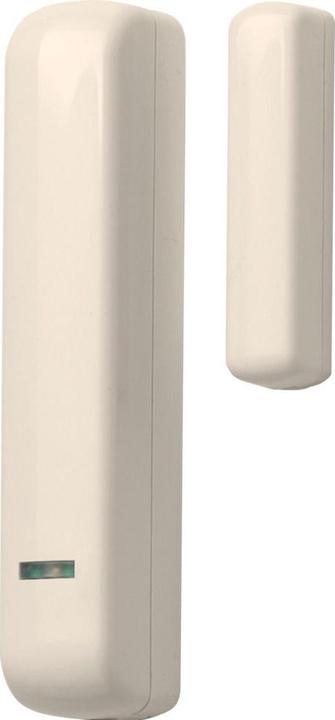

The warm white, glossy door/window sensor is designed for monitoring doors and windows. The sensor and its magnet can be either screwed or glued to the surface of the door or window. Spacers in the corresponding color are included to overcome height differences at the installation site. The door/window sensor is battery-operated with a CR2 battery. The battery can be easily replaced without special tools (only a screwdriver is needed). The multicolored LED indicates when the battery is nearly empty and needs to be replaced or when other corrective actions are required. The local button allows for easy adjustment of the door/window sensor when an ON command is to be sent, either when the door or window is closed or opened.
