Draka UC900 SS23 C7 S/FTP 2x4P LSHF

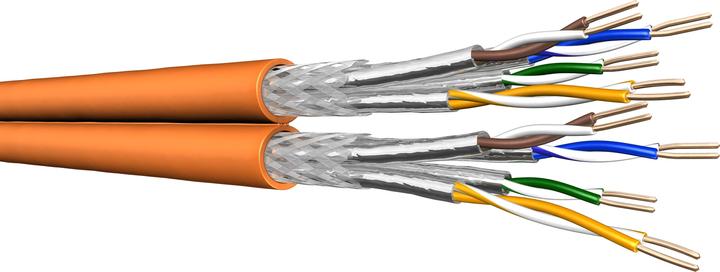

Installation cable for indoor use UC900 SS23 Cat.7 S/FTP 2x4P Ccas1d1a1 500DW. Copper data cable of category 7 for structured cabling with a bandwidth of 1000 MHz. With foil pair shielding and high-quality braided cover, the cable is double-shielded. The 2x4-pair duplex installation cable with 2x8 copper conductors AWG23 is suitable for connecting sockets, patch panels, and modules, including those with LSA technology, for installation in buildings, conduits, and flush-mounted applications, and exceeds the requirements of EN 50173-1, EN 50288-4-1, ISO/IEC 11801, IEC 61156-5, and IEEE 802.3 af/at/bt. The sheath is made of halogen-free, flame-retardant material according to Euroclass Cca s1d1a1. The shielding meets the separation class D according to EN50174 with a coupling attenuation of 85 dB. The cable is future-proof for all applications according to classes C, D, E, EA, F, and FA and is suitable for PoE and PoE+ operation over a channel length according to classes C, D, E, EA, F, and FA up to 100 m. It is suitable for the following transmissions: telephony, Ethernet, Fast Ethernet, Gigabit Ethernet, and 10Gigabit Ethernet, 10BaseT, 100BaseT, 1000BaseT, 1GBase-T, 10GBaseT, or up to 10,000 MBit/s. The cable has the following certifications: 3P-Certification-Program, NVP: 79, Cu number: 76, color: orange, packaging: 500 m reel, article number: 60065310, EAN: 8717511648387.
