Draka Fibre optic cable

Draka Comteq (DNT) Fiber Optic Cable A-DQ(ZN)B2Y OST-5kN-48EOS2

Manufacturer: Draka Comteq (DNT)
Designation: Fiber Optic Cable A-DQ(ZN)B2Y 4x12E9/125 OS2
Type: OST-5kN-48EOS2
Number of fibers: 48
Conductor type: twisted bundle conductor
Number of fibers per conductor: 12
Fiber type: Singlemode 9/125
Category: OS2
With strain relief: yes
With rodent protection: yes
Sheath color: black
Cable longitudinally water-resistant: yes
Cable metal-free: yes
Functionality maintenance: none
Outer diameter approx.: 13 mm
Blowable: yes

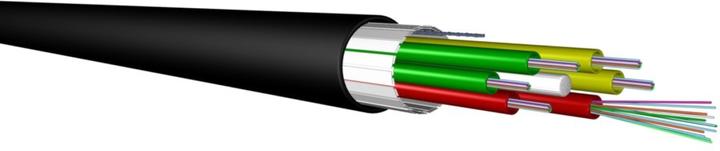

The fiber optic installation cable UCFibre O ST D DA PE 5.0kN 48 SM2D is a fiber optic cable designed as a twisted bundle conductor with gel-filled bundle conductor construction for structured cabling with 48 fibers of Singlemode OS2. The cable is UV resistant, metal-free, longitudinally water-resistant, and rodent-protected with a tensile strength of 5.0 kN. The sheath is made of Compact PE material in Euroclass NPD and is suitable for outdoor use.

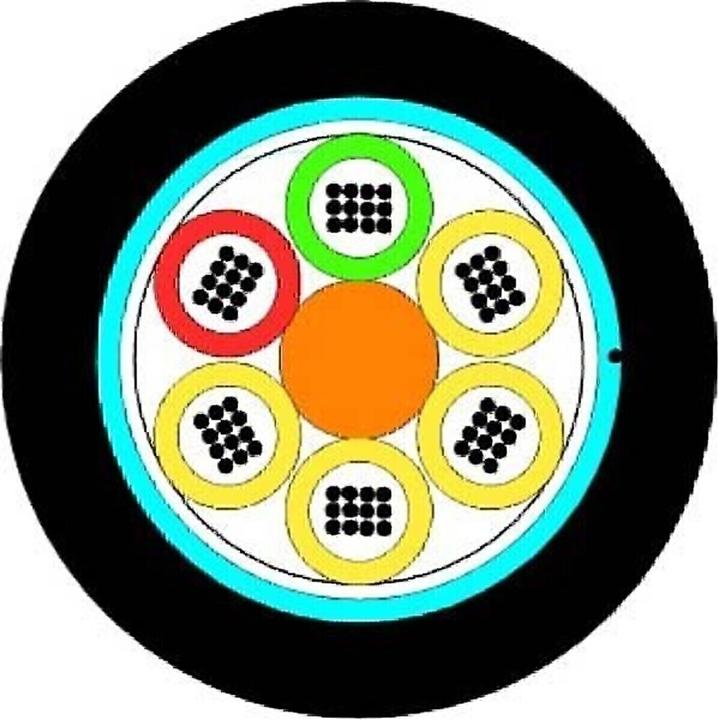

The twisted bundle conductor arrangement of the fibers allows for a compact and high fiber concentration cable design. The fiber optic cable exceeds the requirements of EN 50 173-1, ISO 11801 2nd edition, IEC 60794-2.

Fiber quality: Singlemode OS2
Number of fibers: 48
Tensile strength: 5000 N
Areas of application: Outdoor
Central element: with gel-filled bundle conductor 24 to 144 fibers
Color: black
Outer diameter: 11 mm
Cable sheath: sheath made of Compact PE material
Article number: 60011310
EAN: 8430220456912, EAN: 4065624011876.
