Doepke GmbH Auxiliary switch DHi 4

Ratings
Delivered between Sat, 23.8. and Fri, 12.9.
Free shipping starting at 50.–

Product details

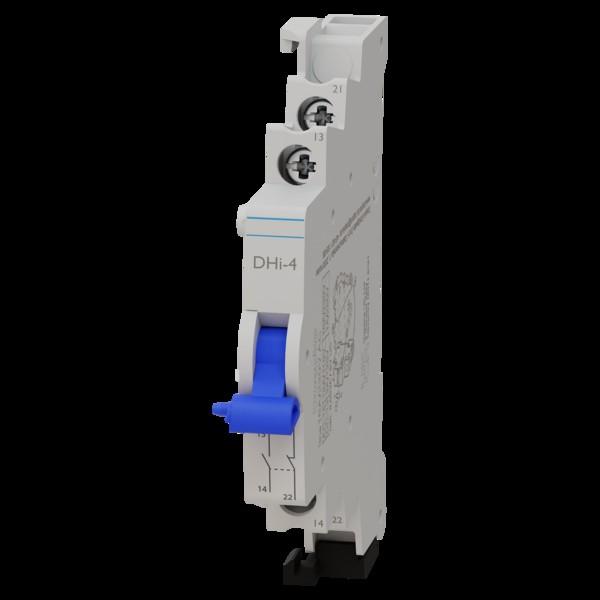

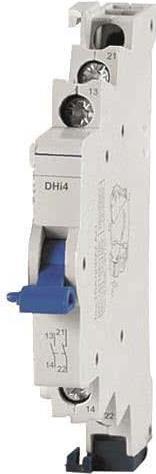

Doepke Auxiliary Switch DHi 4

Manufacturer: Doepke
Designation: Auxiliary Switch
Type: DHi 4
Device Mounting: Circuit Breaker
Additional Device: Auxiliary Switch
Factory Installed: No
Width in Division Units: 0.5
Number of Contacts as Normally Closed: 1
Number of Contacts as Normally Open: 1
Rated Switching Current: 10 A
Rated Voltage: 230 V
Voltage Type for Actuation: AC
With Auto-Test for Residual Current Function: No
Suitable for Max. Pole Count of Main Contact Unit (Total): 4
Suitable for Max. Current Rating of Main Contact Unit: 125 A

Further Details:
Auxiliary switches report the status of the main devices to which they are mounted. The auxiliary switches DHi 3 to DHi 8 are suitable for the circuit breakers of the DLS 6 h, hsl, and i series. They switch in parallel to the circuit breaker during manual disconnection, overload, or short circuit.

Features:

  • Auxiliary switch function for DLS 6
  • Various contact designs available
  • Compact size (0.5 TE)
  • Complies with IEC 60947-5-1, EN 60947-5-1, and VDE 0660-200

Mounting Type: Right of the base device via clamping
Quick mounting on mounting rail
Installation position arbitrary

Areas of Application:
These devices are suitable for monitoring the operational status of power supplies in residential and commercial buildings as well as industrial facilities.

Notes:
The auxiliary switch does not affect the function of the base device.
EAN: 4014712197282.

Key specifications

Circuit breaker type
Auxiliary switch
Length
90 mm
Width
0.50 mm
mounting style
Top-hat rail
number of poles
4
Item number
14175964

General information

Manufacturer
Doepke
Category
Residual-current device
Manufacturer no.
09917985
Release date
11.11.2020

Circuit Breaker Features

Circuit breaker type
Auxiliary switch
mounting style
Top-hat rail
number of poles
4
Rated current
10 A
Rated voltage
230 V
voltage type
AC

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
90 mm
Width
0.50 mm
Height
80 mm
Weight
50 g
