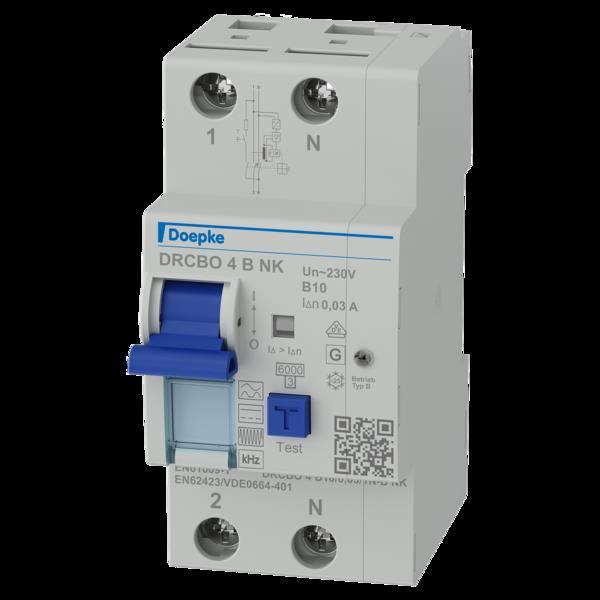

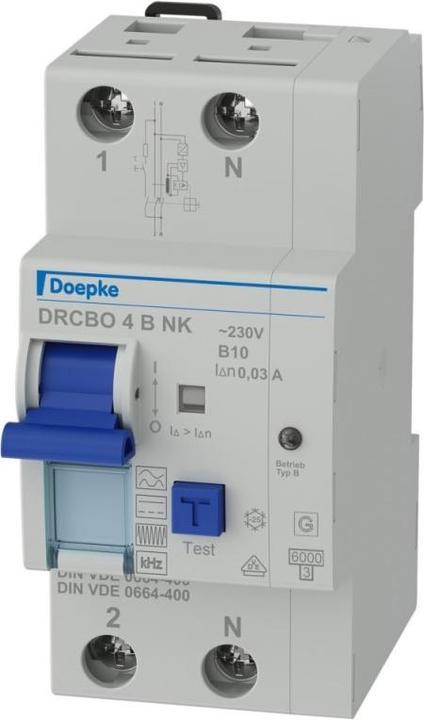

Doepke DRCBO 4 B10/0.03/1N-

Ratings
Delivered between Wed, 22.10. and Fri, 7.11.
free shipping

Product details

The DRCBO 4 B10/0.03/1N-B from Doepke is a highly advanced combination RCD/MCB that integrates both residual current and overload protection in a compact device. This switch not only protects individuals from hazardous residual currents but also safeguards electrical installations against short circuits and overloads. With a rated breaking capacity of 6 kA and a type B tripping characteristic, it is particularly suitable for lighting and socket circuits. Its all-current sensitive properties allow for protection at frequencies ranging from 0 Hz to 150 kHz, making it a reliable choice for various applications. The DRCBO 4 is designed for use in commercial and industrial installations and offers a range of features, including a switching position indicator and a labeling window that facilitate handling and installation. Its compact design and the option for mounting on a DIN rail make it a practical solution for modern electrical systems.

  • All-current sensitive for frequencies from 0 Hz to 150 kHz
  • Voltage-independent tripping for type A residual currents
  • Small size for all rated currents
  • Separate indication of the tripping reason
  • Mounting type: Quick fastening on mounting rail.

Key specifications

Circuit breaker type
Miniature circuit-breaker/residual current circuit-breaker combination
Length
67 mm
Width
2.50 mm
mounting style
Top-hat rail
number of poles
2
Item number
31981653

General information

Manufacturer
Doepke
Category
Residual-current device
Manufacturer no.
09949202
Release date
24.10.2022

Circuit Breaker Features

Circuit breaker type
Miniature circuit-breaker/residual current circuit-breaker combination
mounting style
Top-hat rail
number of poles
2
Tripping characteristic
B
Rated current
10 A
Rated voltage
230 V
voltage type
AC
Rated insulation voltage Ui
440 V
Residual current (rated differential current)
0.03 A
Protection type (IP code)
IP20

Origin

Country of origin
Germany, Italy

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
67 mm
Width
2.50 mm
