Doepke DOEP FI/LS combination

Ratings
Delivered between Thu, 26.6. and Fri, 18.7.

Product details

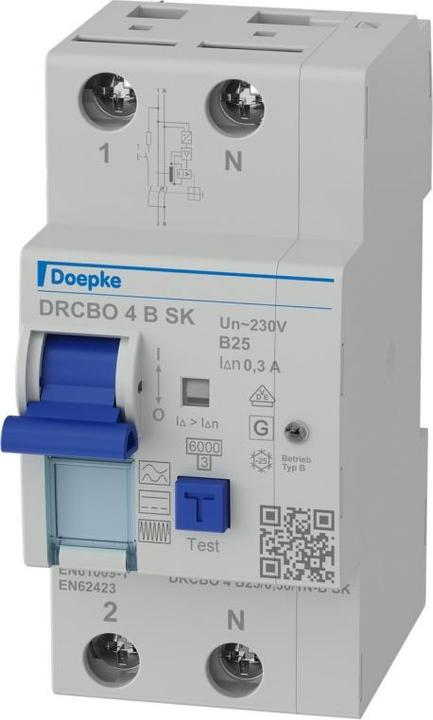

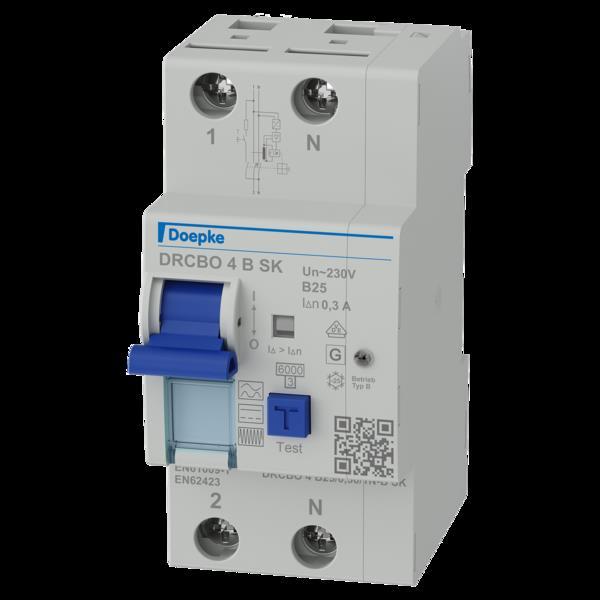

The DOEP FI/LS combination from Doepke is an innovative protective switch that combines the functions of a residual current circuit breaker (FI) and a miniature circuit breaker (LS) in a compact device. This combination provides comprehensive protection for people and electrical systems by safeguarding against both fault currents and short-circuit or overload situations. With a rated breaking capacity of 6 kA and an all-current-sensitive tripping characteristic, this switch is suitable for a wide range of applications. The DRCBO 4 models are particularly robust and shock-resistant, making them ideal for use in demanding environments. Installation is straightforward on a DIN rail, and the device features a labeling window as well as a separate display for the tripping cause, which facilitates handling and maintenance. Thus, the DOEP FI/LS combination is a reliable choice for the protection of electrical installations.

  • All-current sensitive for frequencies from 0 Hz to 150 kHz
  • Low sensitivity at higher frequencies to prevent plant-related false trippings
  • Separate display for the tripping cause for easy fault diagnosis
  • Robust design with increased shock current and lightning resistance
  • Easy installation on DIN rail with quick fastening.

Key specifications

Circuit breaker type
Miniature circuit-breaker/residual current circuit-breaker combination
Length
67 mm
Width
2.50 mm
mounting style
Top-hat rail
number of poles
2
Item number
33800104

General information

Manufacturer
Doepke
Category
Residual-current device
Manufacturer no.
09949116
Release date
17.5.2023

Circuit Breaker Features

Circuit breaker type
Miniature circuit-breaker/residual current circuit-breaker combination
mounting style
Top-hat rail
number of poles
2
Tripping characteristic
B
Rated current
25 A
Rated current
0.3 A
Rated voltage
230 V
voltage type
AC
Rated insulation voltage Ui
440 V
Residual current (rated differential current)
0.30 A
Protection type (IP code)
IP20

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

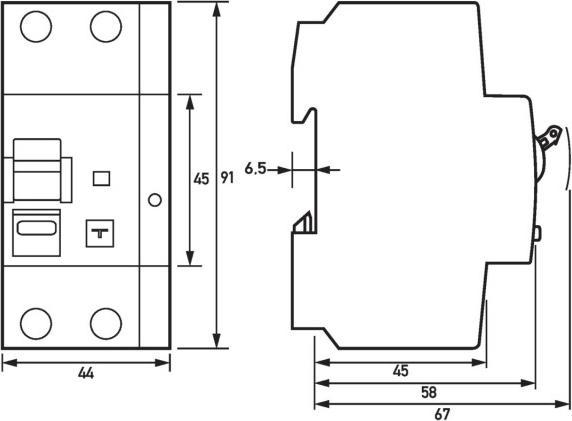

Product dimensions

Length
67 mm
Width
2.50 mm
