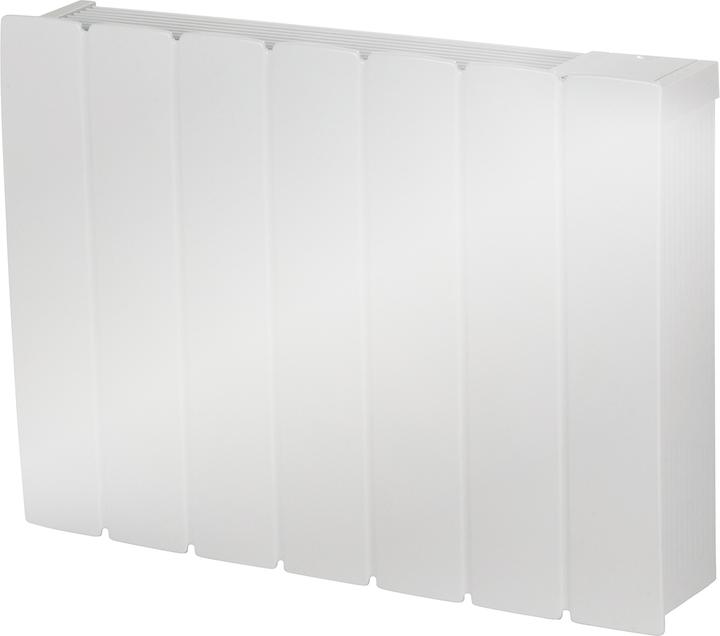

Dimplex SRX 120ECM fan coil unit

Smart Rad fan convector for wall mounting for heating and cooling with integrated electronic thermostat. Manual and automatic operation possible, maximum fan speed can be preset. Automatic switching between heating and cooling in automatic mode or regulation of the 3 fan speeds based on heat demand. Water connections for supply and return (outer diameter 15 mm) can be made on the right, left, rear, or from below. A condensate collection tray and a 2 m long connection hose for draining the condensate generated during cooling operation are included. The convectors can operate in heating mode with a supply temperature of 25 °C (without additional mixer for underfloor heating circuit). The maximum allowable supply temperature in heating mode is 85 °C. The cooling function is available with a supply temperature below 20 °C. Standby energy consumption is less than 4 W. The specified rated output corresponds to the 2nd fan speed - the 3rd fan speed serves as a boost function and increases the rated output by approximately 39%. Parallel operation with additional Smart Rad convectors is possible (master-slave function). Delivery includes a 1 m connection cable (4 x 0.75 mm²) for load and control connection. Color: white. Noise-optimized and energy-efficient fan convector with EC technology. Special accessory VS SRX for easy hydraulic connection (and balancing) of the fan convectors to the heating system. The 3-way valve block can be controlled by the SRX...EC(M) and prevents flow through the convector when there is no heating demand.
