Digitus PoE+ Power Injector 48V 30W 10/100/1000 Mbit RJ45 LAN Input RJ45 PoE Output...

Digitus Professional PoE+ Injector, 802.3at, 30 Watt

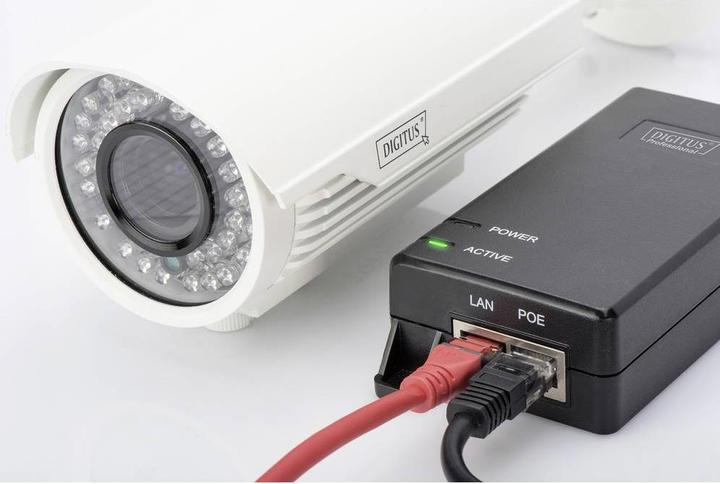

With the Digitus PoE Injector, you can minimize your cabling efforts when installing PoE-enabled devices such as IP network cameras. Data and power supply for the devices are provided through a single Ethernet cable. This eliminates the need for a separate power line, allowing you to expand your network even in areas without power outlets or electrical wiring. The injector is fully compliant with the IEEE802.3at standard and delivers an output power of 30 watts.

Highlights:

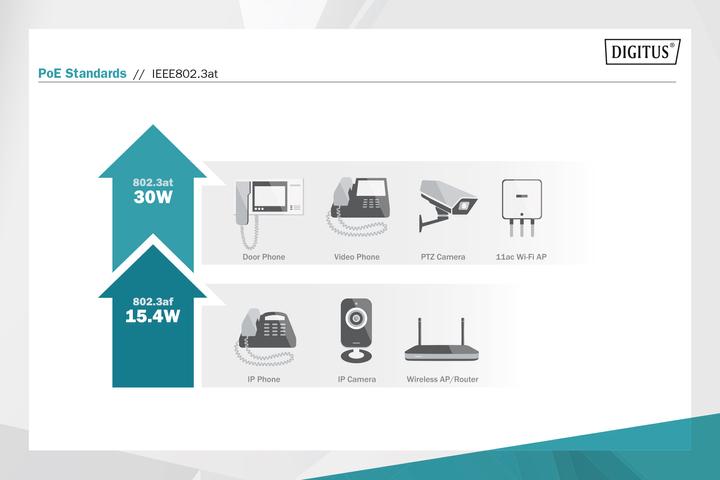

• Complies with the 802.3at PoE+ and 802.3af PoE standards
• Easily combines power and data cables into a single cable
• Expand your network where no power lines or outlets are available
• No configuration required
• Supports all IEEE 802.3af compliant PoE devices (e.g., access points, VoIP phones, and IP cameras)
• Transmission range up to 100 m
• With an additional PoE extender, even up to 400 m
• Power consumption (fully loaded): 7.0W Max.
• Input: 1x RJ-45 (data)
• Output: 1x RJ-45 (power & data)
• Data output: 100/100/1000 Mbit/s Gigabit
• Output power: 30 watts
• Output voltage: 48 V DC
• Operating temperature range: -5 °C to +40 °C
• Dimensions: 140 mm x 63 mm x 32.5 mm
• Weight: 200 g
• The output features power limiting, short circuit protection, as well as automatic device detection and classification

Product Type:

• Plug/Connector
• ear Category (ElektroG): relevant, Category 5: Small devices < 50 cm (all sides), Small devices B2C

Basic Features:

• Color: Black
• Gigabit Ethernet PoE+ Injector, 802.3at
• Power Pins: 4/5(+), 7/8(-), 30W.
