Digitus PoE cable set passive up to max 5m 10/100Mbit RJ45 plug RJ45 socket DC plug+socket 5,5mm

Save yourself the hassle of laying electrical cables with DIGITUS Power over Ethernet products! Most network devices require electricity. Often, there is no power outlet where you want to install your surveillance camera, for example. Now there is a solution: with DIGITUS PoE products, you can install your network components wherever you want! Your devices will then receive power through the existing network cable.

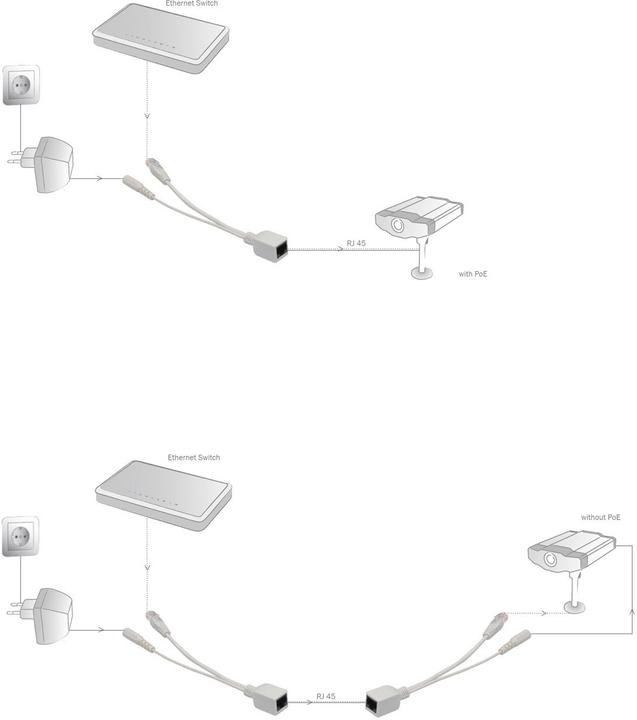

The DIGITUS Passive PoE cable set includes two cables: an input cable for connecting the DC power supply and the network connection via a Cat 5e U-UTP cable, and an output cable for connecting to the end device. This allows you to power your devices over a maximum length of 5 meters.

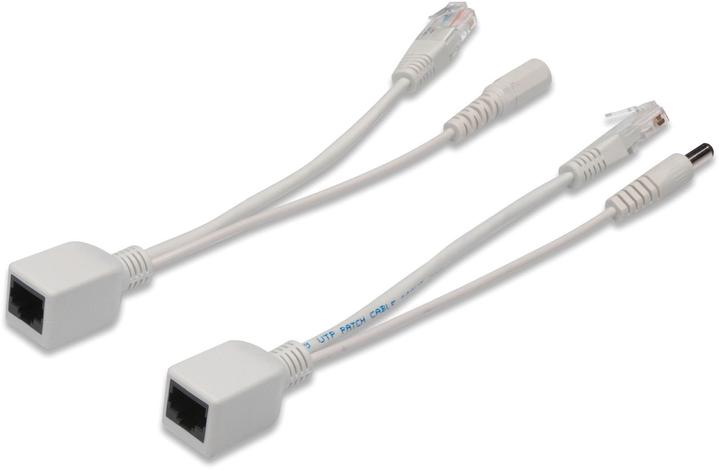

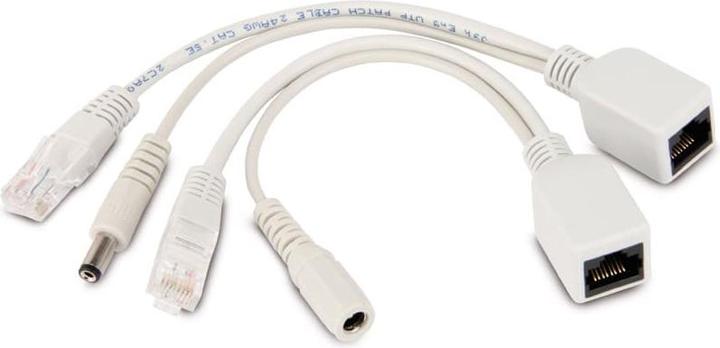

The set contains 1x splitter PD cable and 1x injector PSE cable in white. The plug diameter is 5.5 mm/2.1 mm. The input cable has an RJ45 connector, a DC socket, and an RJ45 socket. The output cable for the end device has an RJ45 connector, a DC plug, and an RJ45 socket and is suitable for 5.5 mm power plugs. The cable connection supports 10/100 Mbit/s and has a PVC sheath. The pin assignment is 1/2/3/6 for data transmission and 4/5/7/8 for power supply.
