Digitus Cat. 7A S/FTP installation cable, 100 m, simplex, Dca
SFTP, CAT7a, 100 mfree shipping

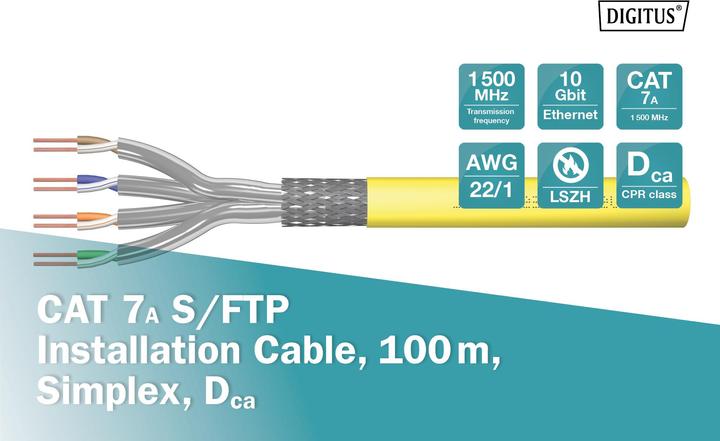

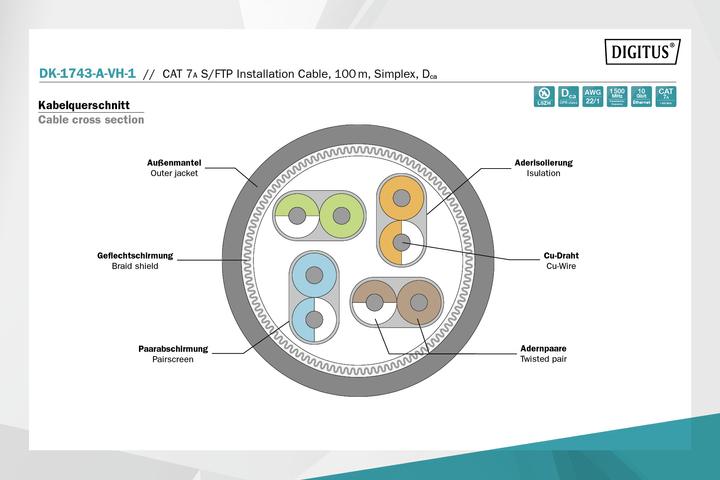

The Digitus Professional Cat.7A S/FTP installation cable features a cable structure of 4x2x AWG22/1 and achieves a transmission frequency of up to 1500 MHz. The halogen-free cable sheath complies with the standards IEC 60332-3-24, FRNC-C, LSZH-3, and the construction product regulation Euroclass Dca. The cable is suitable for structured building cabling in the secondary and tertiary sectors. It meets the standards ISO/IEC 11801, DIN EN 50173, and DIN EN 50288-9-1.
Patch cable type | Copper cable |
Contact assignment | straight |
Item number | 12928502 |
Manufacturer | Digitus |
Category | Network cables |
Manufacturer no. | DK-1743-A-VH-1 |
Release date | 16.3.2020 |
Cable colour | Yellow |
Material | Low-smoke halogen-free (LSZH) |
Material of the isolation | LSOH |
Connection A | N connection |
Cable Application | Network |
Cable design | Round |
Cable connection | Connection (m/m) |
American Wire Gauge (AWG) | 22 |
Frequency | 1500 MHz |
Impedance | 100 Ohm |
Temperature range | 0 to +60 °C |
Patch cable type | Copper cable |
Patch cable Features | Halogen-free |
Max. data transfer rate | 1.25 GB/s |
Cable category | CAT7a |
Contact assignment | straight |
Shield | SFTP |
Number of fibres | 8 x |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | 1 piece |
Diameter | 7.80 mm |
Length | 100 m |
Width | 7.80 mm |
Weight | 65000 g |
Length | 30 cm |
Width | 30 cm |
Height | 14.50 cm |
Weight | 6 kg |
