Delock RJ45 modular plug with robust snap-in lug Cat.6 and bend protection sleeve 50pcs set

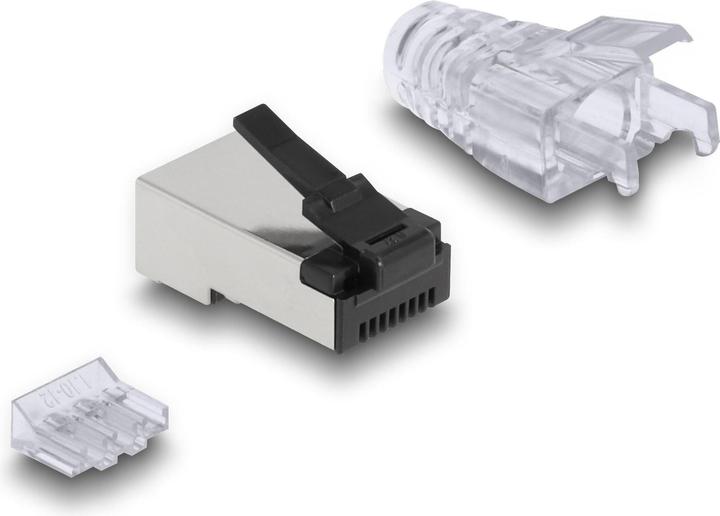

This high-quality RJ45 connector set from Delock includes shielded RJ45 connectors, matching strain relief boots, and a cable insertion tool to optimally assemble installation cables from 26 to 23 AWG.

The robust RJ45 connector is ideal for industrial applications, where connectors need to be plugged and unplugged frequently. Compared to conventional connectors, the industrial connector can be plugged and unplugged up to 2,000 times without bending or breaking the locking tab.

With the included cable insertion tool, the RJ45 connector can be easily mounted, and the strain relief boot protects the cable end from abrasion and prevents excessive pulling forces on the cable.

Specifications:

• RJ45 connector with robust locking tab
• Suitable for Cat.6 cables
• For solid and stranded conductors (26 - 23 AWG)
• Up to 2,000 plug and bend cycles
• Shielded (FTP)
• 3-point contact
• Gold-plated contacts: 1.27 µm / 50 µ″
• Housing material: PA
• Dimensions (LxWxH): approx. 22.5 x 15.0 x 11.7 mm

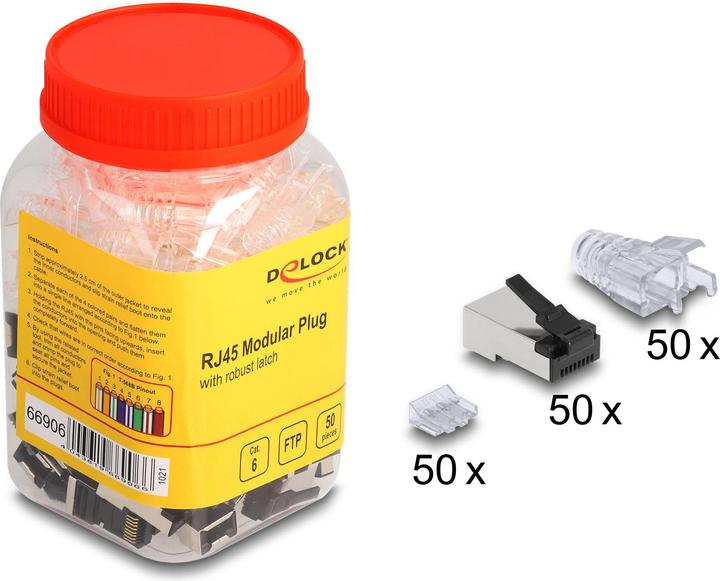

Package contents:

• 50 x RJ45 connectors
• 50 x strain relief boots
• 50 x cable insertion tools

Packaging:

• Box.
