Delock Media converter SFP - RJ45 1Gbps with PoE+

This Gigabit Ethernet media converter from Delock can be used to extend a network with a fiber optic connection. Various optional 1 Gb/s SFP modules from Delock can be used in the SFP slot. The RJ45 port supports Power over Ethernet according to IEEE802.3af / 802.3at, allowing PoE-capable devices, such as IP cameras or PoE splitters, to be powered via the network cable.

Specifications:

• Connections:
• 1 x SFP slot for 1000Base-X SFP module (SFP module not included)
• 1 x RJ45 socket for 10/100/1000 Mb/s Base-T (PoE+)
• 1 x DC socket 5.5 x 2.1 mm (power supply)
• Data transfer rate up to 1 Gb/s
• 6 LEDs for status monitoring
• LFP (Link Fault Passthrough)
• Supports IEEE 802.3 / 802.3u / 802.3ab / 802.3z
• Supports IEEE 802.3at (PoE+) and 802.3af (PoE)
• Spare-pairs power supply (Mode B, pairs 4/5 and 7/8)
• Output power: max. 30 W
• Metal housing
• Fanless
• Operating temperature: -20 °C to 60 °C
• Dimensions (LxWxH): approx. 95 x 71 x 26 mm

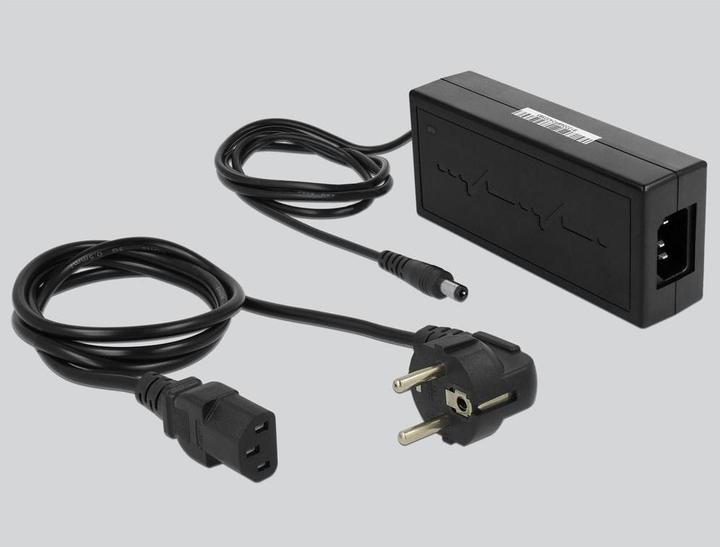

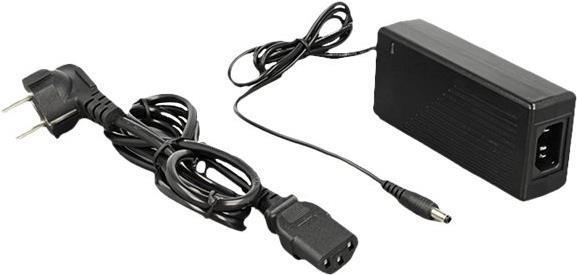

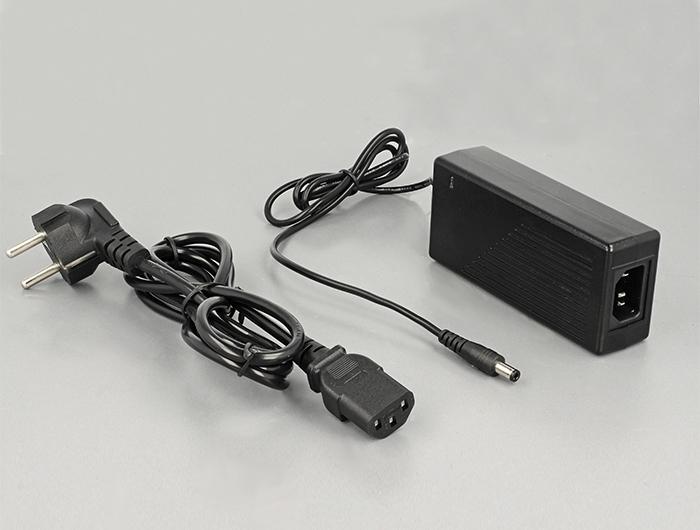

Power supply specifications:

• Power supply with cold device socket
• Input: AC 100 to 240 V / 50 to 60 Hz / 1.5 A
• Output: DC 48 V / 1.25 A
• Dimensions outside, plus inside
• Dimensions:
• inside: approx. 2.1 mm diameter
• outside: approx. 5.5 mm diameter
• Length: approx. 9 mm

System requirements:

• 1000Base-X SFP module
• Device with a free RJ45 port

Package contents:

• PoE media converter
• Power supply
• Power cable
• User manual.
