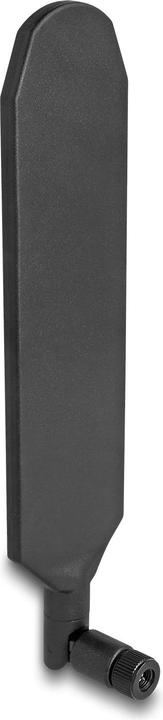

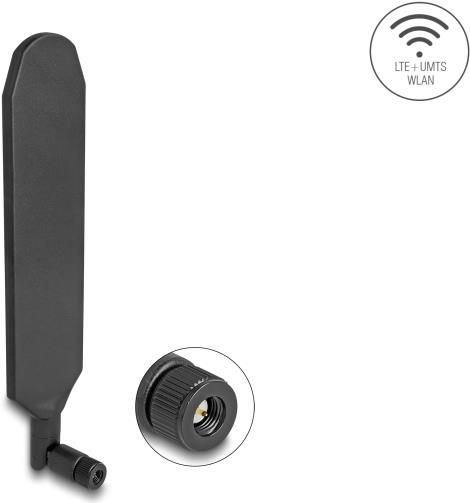

Delock LTE GNSS antenna SMA connector 1.5
DECT, Lora, 4G, GPS, 2G, Wi-Fi, 3G, GSMOnly 4 pieces in stock
Product details
Description
This LTE GNSS antenna by Delock enables the use of different LTE bands as well as the worldwide reception of GNSS signals indoors. It is fully compatible with GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa.
5G the new mobile communications standard
Unlike its predecessors LTE (4G) and UMTS (3G), 5G will utilise more and broader frequency spectrums. The 5G standard promises more throughput, capacity and low latency.
Specifications

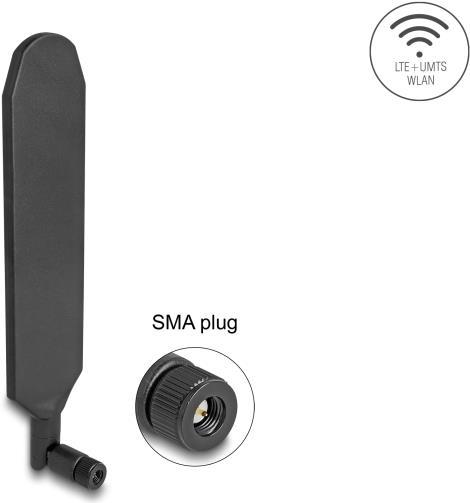

Connection: 1 x SMA connector
LTE, GNSS, Bluetooth, GSM, UMTS, WLAN 2.4, ZigBee, Z-Wave, DECT, LoRa
Frequency range:
700 - 960 MHz
1575.42 MHz
1710 - 2700 MHz
Antenna gain:
700 - 960 MHz: 1.5 dBi
1575.42 MHz 1.8 dBi
2100 - 2700 MHz: 3.0 dBi
Impedance: 50 Ohm
VSWR:
700 - 960 MHz: 3.0
1575 - 2700 MHz: 2.0
Operating temperature: -40 °C ~ 80 °C
Housing material: ABS
Dimensions (LxWxH): approx. 209 x 42 x 6 mm
System requirements
Device with a free SMA connection
Package contents
Antenna.
Antenna type | Mobile radio antenna |
Antenna connection | SMA |
Wi-fi frequency | 2.4 GHz |
Application range | Indoor |
Operating temperature | -40 - 80 °C |
Item number | 41877628 |
Manufacturer | Delock |
Category | Network antenna |
Manufacturer no. | 90103 |
Release date | 8.1.2024 |
Sales rank in Category Network antenna | 87 of 1599 |
Antenna type | Mobile radio antenna |
antenna reception | 2G, 3G, 4G, DECT, GPS, GSM, Lora, Wi-Fi |
Antenna gain | 3 dBi |
Antenna connection | SMA |
Wi-fi frequency | 2.4 GHz |
Application range | Indoor |
Operating temperature | -40 - 80 °C |
Country of origin | China |
CO₂ emissions | 5.36 kg |
Climate contribution | CHF 0.13 |
Length | 0.21 m |
Width | 0.04 m |
Length | 20.90 cm |
Width | 15.50 cm |
Height | 2.20 cm |
Weight | 81 g |
