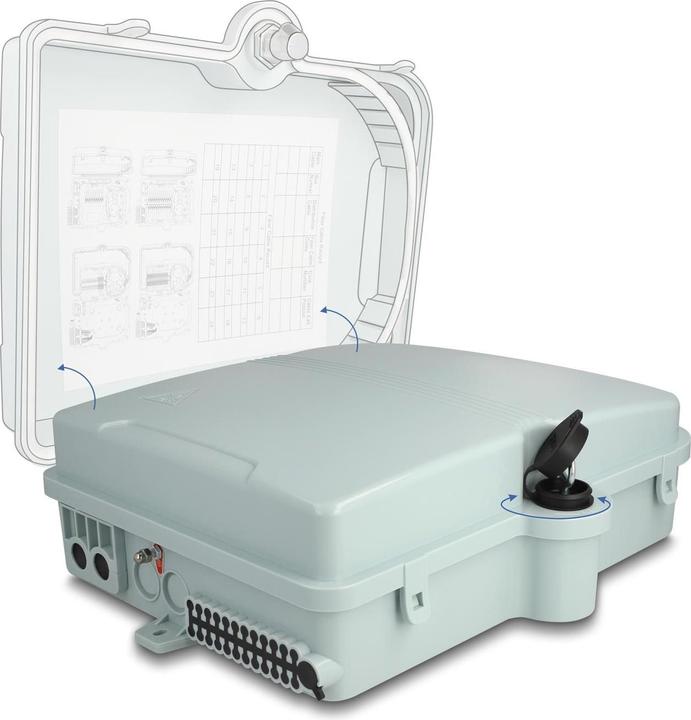

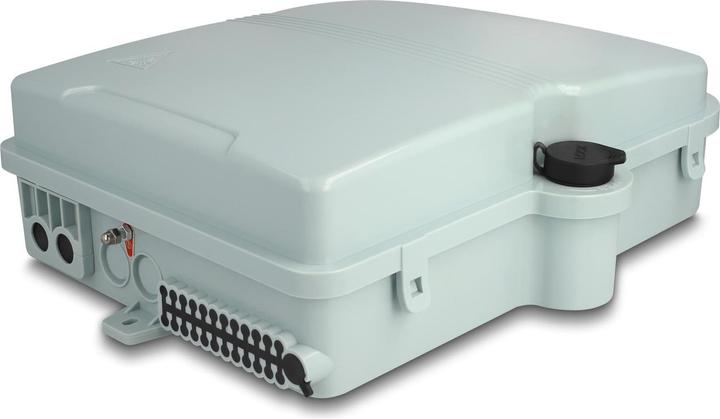

Delock Fibre optic distribution box for indoor and outdoor use IP65 waterproof lockable 24 port grey

This lockable distribution box from Delock is suitable for wall mounting and serves as a protective device for optical cables and connectors. The distribution box can accommodate up to 24 SC Simplex or LC Duplex connectors.

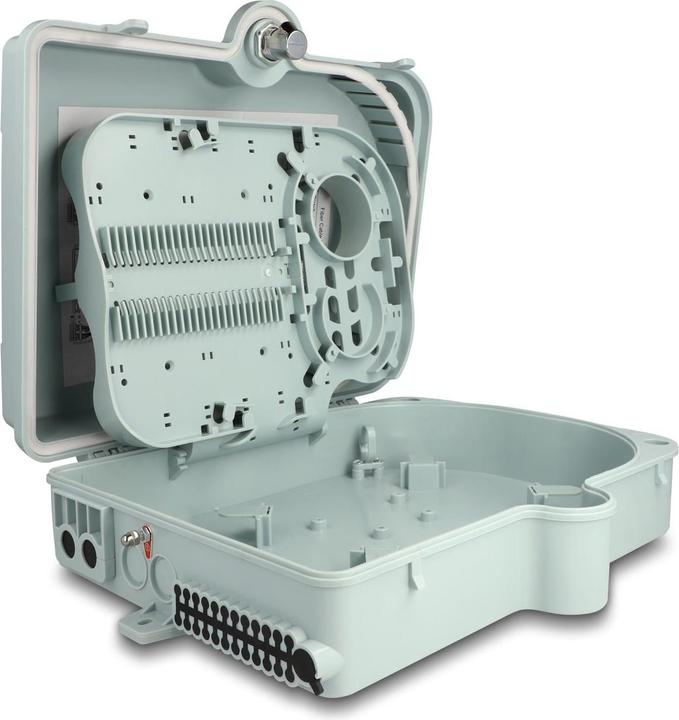

With splice cassette
The integrated splice cassette allows for neat arrangement of individual fibers for optimal transmission of light wave signals. Additionally, the cassette is perfect for mechanical splicing and fusion splicing.

IP65 dust and waterproof
The distribution box features two cable entries and 25 cable exits, which are protected by a rubber seal. The seals provide a waterproof seal to the housing for the passage of fiber optic cables both indoors and outdoors. Furthermore, a screw fitting can be installed on the front of the housing to allow for an additional cable entry.

Specifications

• Fiber optic distribution box for FTTH applications
• 24 slots for SC Simplex or LC Duplex connectors
• Wall mounting
• Lockable
• With splice cassette
• Cable entries and exits
• Suitable for indoor and outdoor use
• Protection class: IP65
• Ambient temperature: -40 °C to 75 °C
• Housing color: gray
• Housing material: ABS
• Dimensions (LxWxH): approx. 330 x 270 x 100 mm

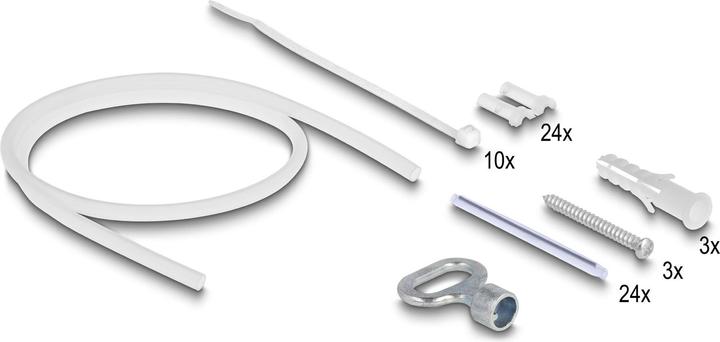

Package contents

• Fiber optic distribution box
• 1 x key
• Mounting materials
• Plastic tubing
• 24 x heat shrink splice protection.
