Delock Antenna tilt joint, 20 cm, only 5Ghz 5 dBi
Wi-FiDelivered the day after tomorrow
Only 1 piece in stock
Only 1 piece in stock
Free shipping starting at 50.–
Product details

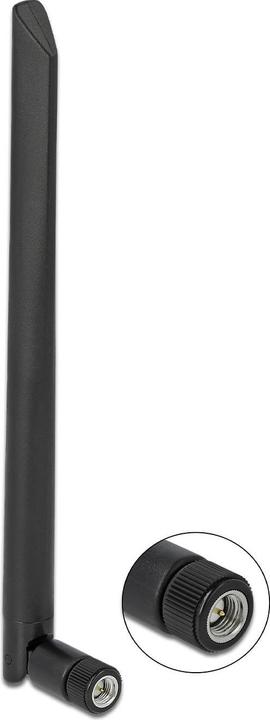

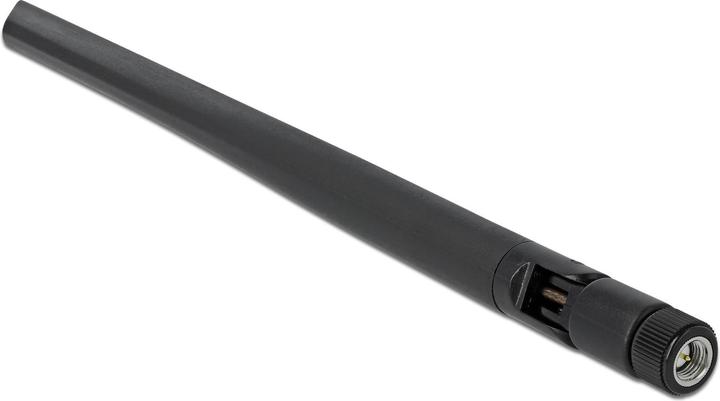

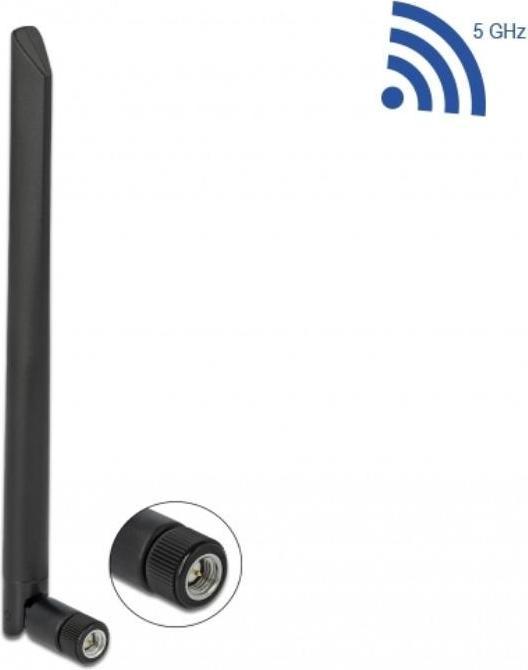

Delock WLAN 802.11 ac/ax/a antenna with RP-SMA connector, 5 dBi, 20 cm omnidirectional, with tilt joint and flexible material in black.
This WLAN antenna from Delock can be connected to a WLAN device with an RP-SMA interface to send and receive signals.
Connector: 1 x RP-SMA connector
Frequency range: 5.150 - 5.850 GHz
Antenna gain: 5 dBi
Impedance: 50 Ohm
VSWR: 2.2
Polarization: linear, vertical
Operating temperature: -10 °C to 70 °C
Length: approx. 200 mm (with tilt joint), approx. 177 mm (without tilt joint)
Diameter: approx. 12.70 mm (RP-SMA)
System requirements: Device with a free RP-SMA connection.
Antenna type | Mobile radio antenna, WLAN Antenna |
Antenna connection | RP-SMA |
Wi-fi frequency | 5 GHz |
Application range | Indoor |
Operating temperature | 0 - 70 °C |
Item number | 14596099 |
Manufacturer | Delock |
Category | Network antenna |
Manufacturer No. | 12637 |
Release date | 21.10.2020 |
Sales rank in Category Network antenna | 66 of 1713 |
External links |
Antenna type | Mobile radio antenna, WLAN Antenna |
antenna reception | Wi-Fi |
Antenna gain | 5 dBi |
Antenna connection | RP-SMA |
Wi-fi frequency | 5 GHz |
Application range | Indoor |
Operating temperature | 0 - 70 °C |
Country of origin | China, Germany, Taiwan |
CO₂ emissions | 0.24 kg |
Climate contribution | CHF 0.11 |
Length | 0.20 m |
Width | 0.01 m |
Weight | 43 g |
Length | 21.50 cm |
Width | 3.30 cm |
Height | 3.20 cm |
Weight | 39 g |
