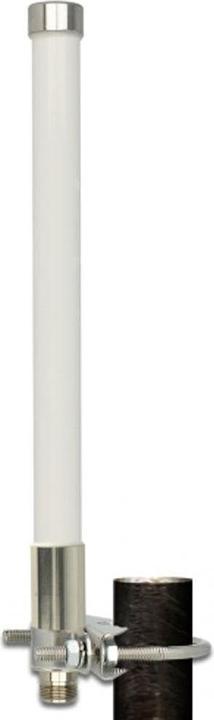

This antenna from Delock enables the use of the 868 MHz band indoors and outdoors.
Connection: 1 x N socket
Antenna type: Collinear dipole array
Frequency range: 860 - 870 MHz
Antenna gain: 3 dBi
Impedance: 50 Ohm
Polarisation: Linear, vertical

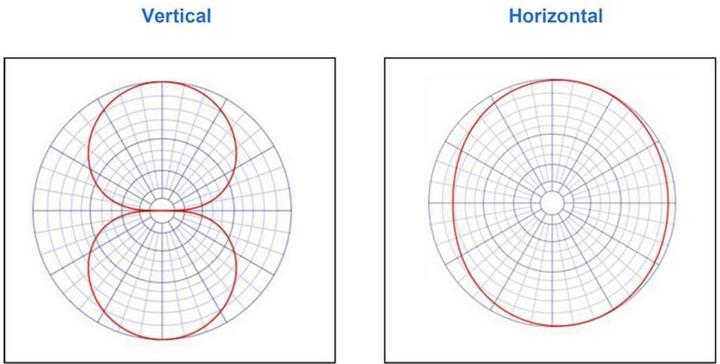

HBW horizontal beam angle: 360
VBW vertical beam angle: 60
VSWR: 1.5
Transmitting power: Max. 100 W
Operating temperature: -40 °C to 80 °C
Protection class: IP65
Housing material: GRP UV protected
Colour: White

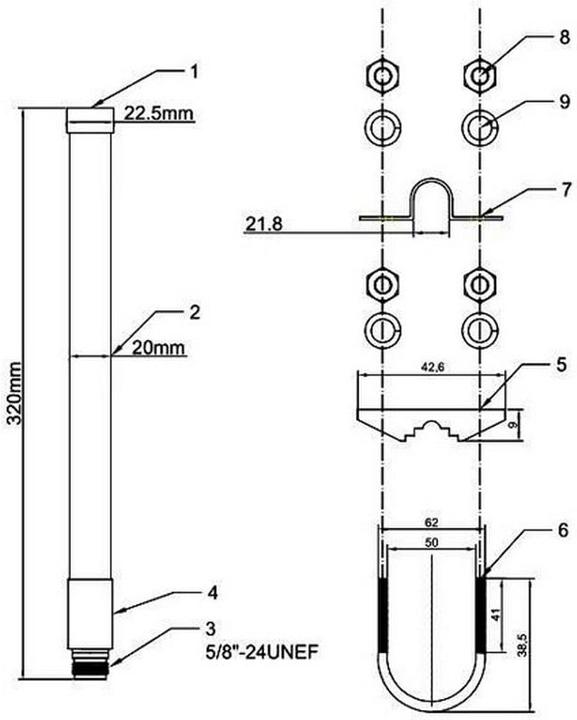

Length: Approx. 32.0 cm
Diameter: Approx. 2.2 cm
Weight: Antenna: Approx. 145 g; fixing material: Approx. 75 g
System requirements:
Device with a free N plug
Contents of the package:
Antenna

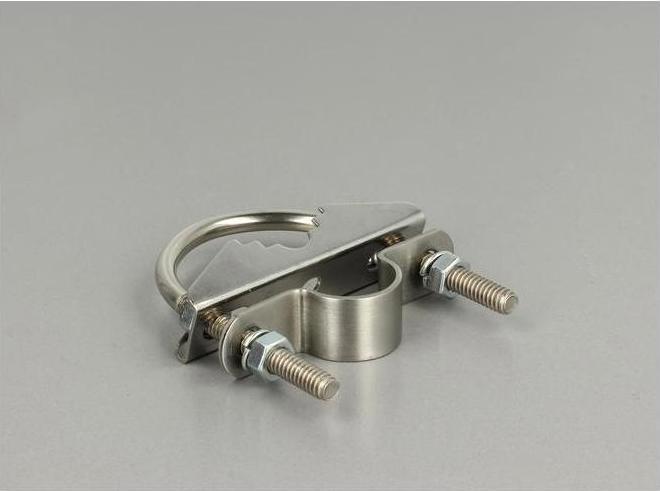

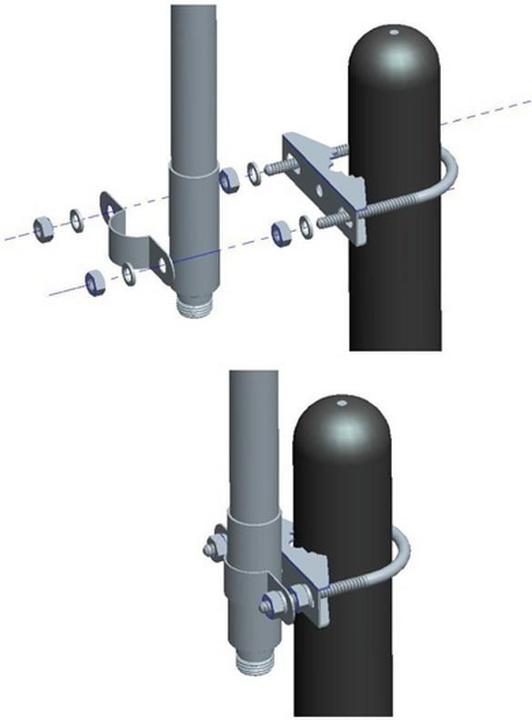

Mounting material.
Antenna type | Mobile radio antenna |
Antenna connection | N-Type |
Application range | Indoor, Outdoor |
Protection type (IP code) | IP65 |
Operating temperature | -40 - 80 °C |
Item number | 14182482 |
Manufacturer | Delock |
Category | Network antenna |
Manufacturer no. | 89583 |
Release date | 11.11.2020 |
Sales rank in Category Network antenna | 35 of 1546 |
Antenna type | Mobile radio antenna |
antenna reception | Lora |
Antenna gain | 3 dBi |
Antenna connection | N-Type |
Application range | Indoor, Outdoor |
Protection type (IP code) | IP65 |
Operating temperature | -40 - 80 °C |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 0.32 m |
Width | 0.02 m |
Height | 0.02 m |
Weight | 145 g |
Length | 36.50 cm |
Width | 7.50 cm |
Height | 4.50 cm |
Weight | 280 g |
