Dehn Band pipe clamp 540803 with connection screw M10

Ratings
Delivered between Tue, 12.8. and Wed, 3.9.

Product details

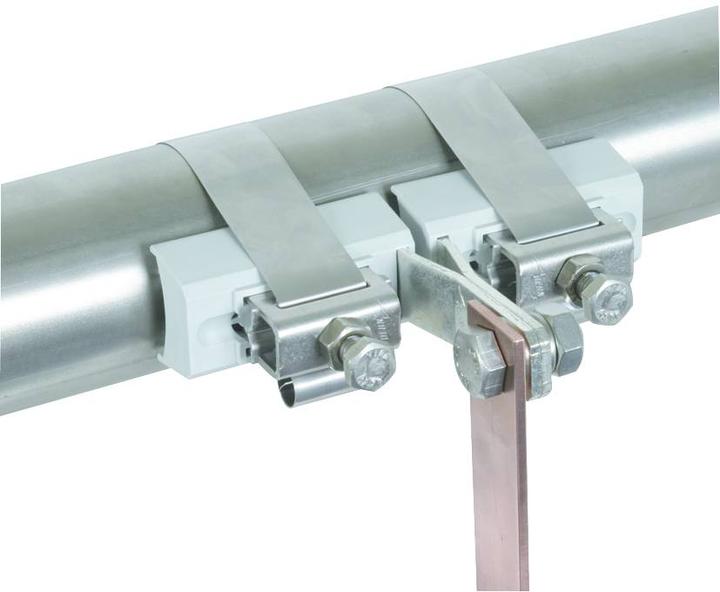

DEHN Ex-Pipe Clamp EXBRS300 Manufacturer: DEHN Description: Ex-Pipe Clamp D9-300Cu/gal Zn-NIRO Type: EXBRS300 Clamping/Spanning Range: 89..300 mm Minimum Clamping/Spanning Range in Inches: 3 inches Material: Stainless Steel 304 (V2A) Surface Protection: Untreated Bimetal Connector: No Explosion-Proof: Yes

DEHN Ex-Pipe Clamp EXBRS300: Additional Details Pipe clamp for Ex areas, for electrical contact of pipes in Ex areas, to implement lightning protection potential equalization according to DIN EN 62305-3. For use in explosion hazard areas Ex Zones 1 and 2 (Gases, Vapors, Mists) as well as Ex Zones 21 and 22 (Dusts). Tested according to explosion group IIB and DIN EN 62561-1. Significant savings in assembly time. Decommissioning of the system or areas due to welding or drilling work is no longer necessary. Design Type EX BRS 300, for clamping range D89-300 mm. Necessary mounting set sold separately. EAN: 4013364115477.

Key specifications

Item number
20023299

General information

Manufacturer
Dehn
Category
Network cables
Manufacturer no.
540803
Release date
3.5.2021
External links
Manufacturer's site (de)

Material

Material
Stainless steel (V2A)

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x
Scope of delivery
1

Product dimensions

Diameter
300 mm
